MADGETECH

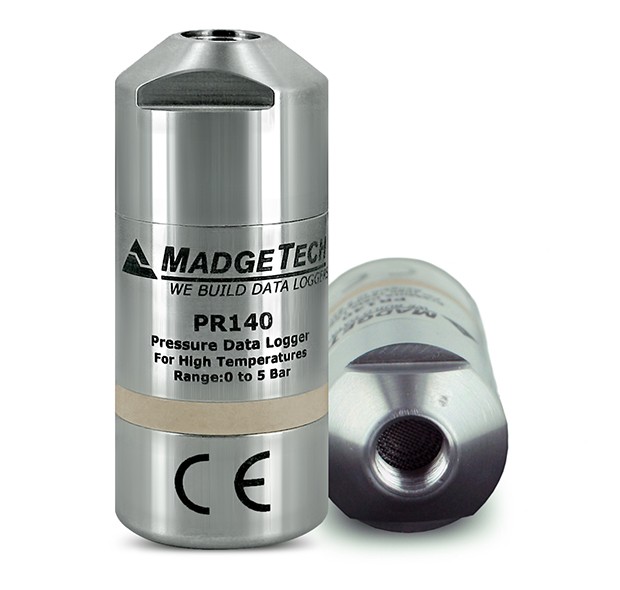

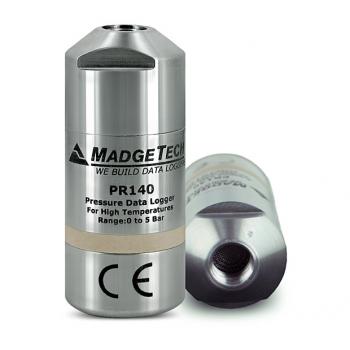

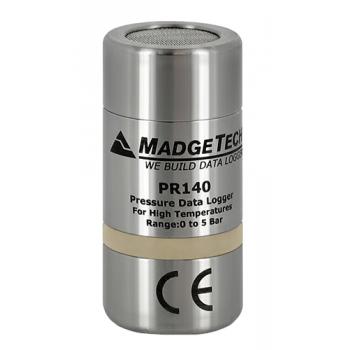

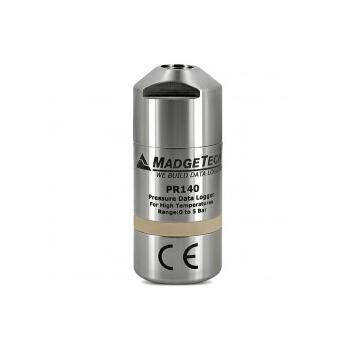

PR140 -- High Temperature Pressure Data Logger

Category: DATA LOGGER, PRESSURE

Model: Pressure, Pressure Data Logger

Avaibility: AVAILABLE

Call For Price

The PR140 is a pressure data logger designed for use in autoclave validation and mapping. This rug - ged device can withstand temperatures up to 140 °C and is completely submersible (IP68). The PR140 is built with a precision stainless steel pressure gauge. The device has an accuracy of ±0.03 Bar (±0.435 PSI), which can be achieved over a wide temperature range, from 20 °C to +140 °C (68 °F to 284 °F). The PR140 can be programmed to take readings as often as once per second (1 Hz), and has non-volatile memory that can store up to 32,700 measurements. The 1/8 inch NPT pressure port featured on the de - vice allows for compatibility with a variety of fittings and adapters. This is ideal for calibration purposes, as well as connecting the data logger to measure process ressure systems. The PR140 is easy to use. Simply place it in the IFC400 or IFC406 docking station (sold separately), connect to a computer, and the device can be started, stopped or downloaded using the MadgeTech software. Graphical, tabular and summary data is provided for analysis and can be viewed in PSIA, mmHg, bar, Torr and kPa. The data can also be automatically exported to Excel® for further calculations.

PRESSURE

Pressure Sensor

Semiconductor strain gauge

Pressure Range

0 to 5 Bar (0 to 72.5 PSIA)

Pressure Resolution

0.0001 Bar

Calibrated Accuracy

+0.03 Bar (+0.435 PSI), +20 °C to +140

°C (+68 °F to +284 °F)

Pressure Respon Time

0.1 ms (10 to 90 % FSR)

Reading Rate

1 reading every second up to 1 reading every 24 hours

Memory

32,700 readings; software configurable memory wrap

Start Mode

Software programmable immediate start or delay start up to six months

Real Time Recording

May be used with PC to monitor and record data in real time

Calibration

Digital calibration through software

Calibration Interval

Yearly calibration recommended

Reading Rate

1 reading every 2 seconds up to 1 reading every 24 hours

Calibration

Digital calibration through software

Calibration Date

Automatically recorded within device

Battery Type


3.6V high-temperature lithium battery included, user replaceable

Battery Life:

2 Years

Data Format

PSIG, inHg, mmHg, bar, atm, Torr, Pa, kPa, MPa

Time Accuracy:

±1 minute/month (at 20 °C to 30 °C)

Computer Interface:

USB (interface cable required); 115,200 baud

Software:

XP SP3/Vista/Windows 7/Windows 8

Operating Environment:

20 °C to +140 °C (-4 °F to +284 °F),

0 %RH to 100 %RH, 0.002 PSIA to 100 PSIA

Dimensions:

Flush Top: 2.0 in x 1.0 in dia. (50.8 mm x 25.4 mm dia.)NPT Pressure Port Top: 2.3 in x 1.0 in dia.(58.2 mm x 25.4 mm dia.)

Weight:


40 oz (1134 g)

Enclosure

Stainless Steel

Approvals:

CE

BATTERY WARNING: RISK OF FIRE OR EXPLOSION. DO NOT RECHARGE, FORCE OPEN, HEAT OR DISPOSE OF IN FIRE
