DAVIS INSTRUMENTS

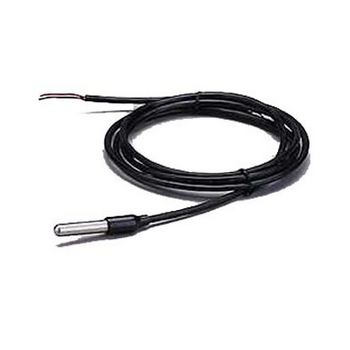

6470 -- Stainless Steel Temperature Probe with Two-Wire Termination

Category: WEATHER

Model: Optional Sensors

Avaibility: AVAILABLE

Call For Price

Measure temperature of air, soil, or water with this multi-purpose temperature probe.

General

Sensor Type (see Charts) . . . . . . . . . . . . . . . . . . . . . . . . Precision thermistor

Time Constant

In Still Air . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100 seconds

In Liquid. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 seconds

Attached Cable Length . . . . . . . . . . . . . . . . . . . . . . . . . . 15' (4.6 m)

Cable Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 AWG direct burial cable, wires stripped and tinned

Recommended Maximum Cable Length (see Note 1)

24 AWG Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 800' (242 m)

Housing Material . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 316 alloy stainless steel housing with vinyl strain relief

Housing Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.312" diameter x 2.5" long (8 mm diameter x 64 mm long)

Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.5 oz. (128 g)

Sensor Output

Resolution and Units . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1°F or 1°C (user-selectable)

Historical Graph Data and Alarms: 1°F or 1°C (user-selectable)

Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -40° to +150°F (-40° to +65°C)

Sensor Accuracy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±1°F (±0.5°C) typical

Update Interval . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77 to 90 seconds

Input/Output Connections

Black. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Common

White . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Temperature (variable resistance to common)
