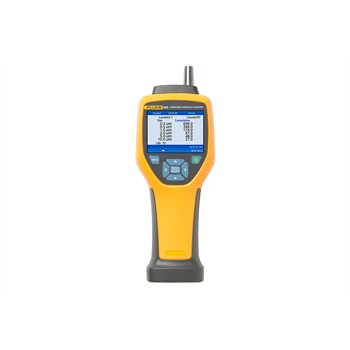

Specifications: Fluke 985 Particle Counter
Specifications: Fluke 985 Particle Counter
| Measured Specifications |
| Channels | 0.3 ?m, 0.5 ?m, 1.0 ?m, 2.0 ?m, 5.0 ?m, 10.0 ?m |
| Flow rate | 0.1 cfm (2.83 L/min) |
| Light source | 775 nm to 795 nm, 90 mW class 3B laser |
| Count modes | Raw counts, #/m3, #/ft3, #/liter in Cumulative or Differential mode |
| Counting efficiency | 50% @ 0.3 ?m; 100% for particles > 0.45 ?m (per ISO 21501) |
| Zero count | 1 count / 5 minute (JIS B9921) |
| Concentration limits | 10% at 4,000,000 particles per ft3 (per ISO 21501) |
| Data storage | 10,000 records (rotating buffer) |
| Alarms | Counts, low battery, sensor fail |
| Delay time | 0 to 24 hours |
| Sample inlet | Isokinetic probe |
| Security | Administrator password control (optional) |
| Communication mode | USB or Etheret |
| Dimensions (L x W x D) | 27.2 x 9.9 x 5.3 cm (10.7 x 3.9 x 2.1 in) |
| Weight | 0.68 kg (1.5 lb) |
| Power adapter | 100 V AC to 240 V AC, 12 V DC, 2.5 A |
| Rechargeable battery | Li-ion 7.4 V 2600 mAh; 10 hours typical use (5 hours continuous sampling) / 3.5 hours |
| Calibration | PSL particles in air (NIST traceable) |
| Operating environment | 50°F to 104°F (10°C to 40°C) / < 95% non-condensing relative humidity |
| Storage environment | 14°F to 122°F (-10°C to 50°C)/Up to 98% non-condensing relative humidity |
| Warranty | One-year |
| Accessories included | Cradle for charging and convenient USB and Ethernet communications, USB-A to MINI-B 6 foot cable, 12 V dc power supply, zero count inlet-filter, filter adapter, sample inlet protective cap, hard case |
