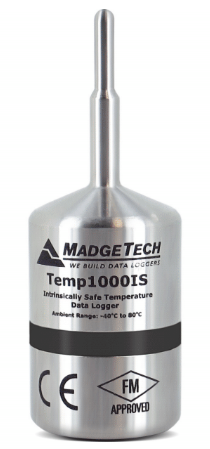

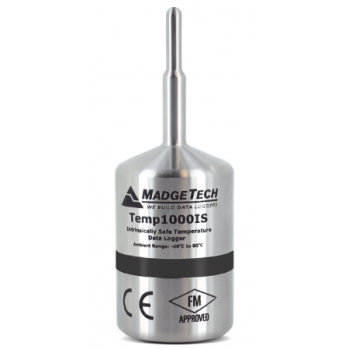

The Temp1000IS temperature logger is a rugged, battery powered, stand alone device which can be used to automatically record temperatures between –40 °C and 80 °C. This all in one compact, portable, easy to use device is able to measure and record up to 32,767 temperature measurements. The Temp1000IS has been Factory Mutual certified as intrinsically safe for Class I, Division 1, groups A, B, C and D and non-incendive for Class I, Division 2, groups A, B, C and D hazardous environments. This certification makes the device ideal for uses such as EtO sterilization, environmental studies and numerous other hostile environment applications. Its real time clock ensures that all the data is time and date stamped. The storage medium is non-volatile solid state memory, providing maximum data security even if the battery becomes discharged. The device can be started and stopped directly from your computer and its small size allows it to fit almost anywhere. The Temp1000IS makes data retrieval quick and easy. Simply place the device into an IFC400 or an IFC406 series docking station and our user-friendly software does the rest.
|
Temperature Sensor:
|
Resistance Temperature Detector (RTD)
|
|
Temperature Range:
|
-40 ºC to +80 ºC
|
|
Temperature Resolution:
|
0.01 ºC
|
|
Calibrated Accuracy:
|
±0.5 ºC (0 to +50 ºC)
|
|
Memory:
|
32,767 readings
|
|
Start Modes:
|
Software programmable immediate start or delay start, up to 2 years in advance
|
|
Real Time Recording:
|
May be used with PC to monitor and record data in real time (PC interface not IS rated)
|
|
Reading Rate:
|
1 reading every 2 seconds up to 1 reading every 12 hours
|
|
Lethality Equations:
|
Sterilization Units and Pasteurization Units are available in software with the click of a button
|
|
Calibration:
|
Digital calibration through software
|
|
Calibration Date:
|
Automatically recorded within device
|
|
Battery Type:
|
3.6V lithium battery included, user replaceable
|
|
|
|
|
Battery Life:
|
2 years typical at 15 minute reading rate
|
|
|
|
|
Data Format:
|
Date and time stamped ºC, ºF, K, ºR
|
|
|
|
|
Time Accuracy:
|
±1 minute/month at 20 ºC
|
|
|
|
|
Required Interface
|
IFC400 or IFC406
|
|
Package:
|
|
|
|
|
Operating System
|
XP SP3/Vista/Windows 7/Windows 8
|
|
Compatibility:
|
|
|
|
|
MadgeTech Software
|
• Standard Software version 4.1.0.2 or later
|
|
Compatibility:
|
• Secure Software version 4.1.3.0 or later
|
|
|
|
|
Operating Environment:
|
-40 ºC to +80 ºC, 0 %RH to 95 %RH
|
|
|
(case properly sealed)
|
|
|
|
|
Dimensions:
|
2.65 in x .97 in dia. (67.3 mm x 24.6 mm dia.)
|
|
|
|
|
Weight:
|
3 oz (85 g)
|
|
|
|
|
Materials:
|
316 Stainless Steel
|
|
|
|
|
IP Rating:
|
Not Rated - Caution: Do not submerge this
|
|
|
product to retain IS rating
|
|
Approvals:
|
IS, CE
|
|
|
|
