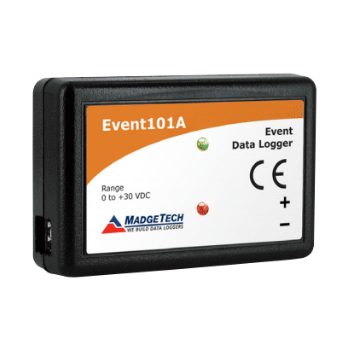

The Event101A is one of MadgeTech’s newest data loggers. It is part of a new series of low cost, state-of-the-art data logging devices. MadgeTech has taken the lead in offering the most advanced, low cost, battery powered data loggers in the world today.
The Event101A offers a 10 year battery life, 4Hz reading rate, a multiple start/stop function, ultra-high speed download capability, 406,323 reading storage capacity, optional memory wrap, battery life indicator, optional password protection and more. The Event101A is priced at $99 each and can be delivered from stock now. Our research has shown that the Event101A is second to no other data logger when it comes to price and performance.
Using the MadgeTech Software, starting, stopping and downloading from the Event101A is simple and easy. Graphical, tabular and summary data is provided for analysis and data can be viewed in multiple units, using the Engineering Units function. The data can also be automatically exported to Excel® for further calculations.
As the leader in low power data logger technology, MadgeTech continuously improves its products and develops solutions to meet ever-changing challenges. The Event101A was designed with our customers in mind. MadgeTech offers free firmware upgrades for the life of the product so that data loggers already deployed in the field can grow with new technological developments. Units do not need to be returned to the factory for upgrades. The user can do this automatically from any PC.
|
Input Connection:
|
Removable screw terminal
|
|
Input Range:
|
0 to 30V
|
|
Input Low:
|
<0>
|
|
Input High:
|
>2.8V
|
|
Internal Weak Pull-Up:
|
<60>
|
|
Input Impedance:
|
>60k?
|
|
Minimum Input Active (Low) Time:
|
10 Microseconds
|
|
Time Resolution:
|
4Hz (reading rate selectable in software)
|
|
Reading Rate**:
|
4Hz to 1 every 24 hours
|
|
Memory:
|
406,323 readings; software configurable memory wrap
|
|
Wrap Around:
|
Yes
|
|
Start Modes:
|
Immediate start
- Delay start up to 18 months
- Multiple pushbutton start/stop
|
|
Multiple Start/Stop Mode:
|
Start and stop the device multiple times without having to download data or communicate with a PC
|
|
Stop Modes:
|
Manual through software
Timed (specific date and time)
|
|
Multiple Start/Stop Mode Activation:
|
To stop the device:
Press and hold the pushbutton for 5 seconds, the red LED will flash for three seconds and then the green LED will flash for two seconds. The device has stopped logging.
|
|
Real Time Recording:
|
The device may be used with PC to monitor and record data in real-time
|
|
LED Functionality:
|
Green LED blinks:
10 second rate to indicate logging
15 second rate to indicate delay start mode
Red LED blinks:
10 second rate to indicate low battery
and/or full memory
|
|
Password Protection:
|
An optional password may be programmed into the device to restrict access to configuration options. Data may be read out without the password.
|
|
Engineering Units:
|
Native measurement units can be scaled to display measurement units of another type such as on/off, open/closed or rainfall.
|
|
Battery Type:
|
3.6V lithium battery included; user replaceable
|
|
Battery Life:
|
10 years typical, dependent upon frequency and duty cycle.
|
|
Time Accuracy:
|
±1 minute/month (at 20ºC/68ºF, stand alone data logging)
|
|
Computer Interface:
|
USB (interface cable required); 115,200
|
|
Software:
|
baud XP SP3/Vista/Windows 7/Windows 8
|
|
Operating Environment:
|
-40ºC to +80ºC (-40ºF to +176ºF), 0%RH to 95%RH non-condensing
|
|
Dimensions:
|
1.4” x 2.2” x 0.6” (36mm x 56mm x 16mm)
|
|
Weight:
|
0.9 oz (24 g)
|
|
Materials:
|
ABS Plastic
|
|
Approvals:
|
CE
|
