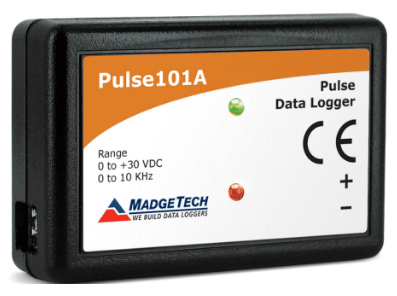

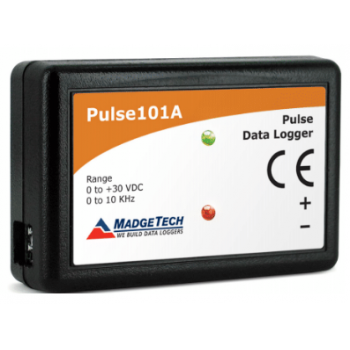

The Pulse101A is one of MadgeTech’s newest data loggers. It is part of a new series of low cost, state-of-the-art data logging devices. MadgeTech has taken the lead in offering the most advanced, low cost, battery powered data loggers in the world today.
The Pulse101A offers a 10 year battery life, 1 second reading rate, a multiple start/stop function, ultra-high speed download capability, 500,000 reading storage capacity, optional memory wrap, battery life indicator, optional password protection and more. The Pulse101A is priced at $99 each and can be delivered from stock now. Our research has shown that the Pulse101A is second to no other data logger when it comes to price and performance.
Using the MadgeTech Software, starting, stopping and downloading from the Pulse101A is simple and easy. Graphical, tabular and summary data is provided for analysis and data can be viewed in multiple units, using the Engineering Units function. The data can also be automatically exported to Excel® for further calculations.
As the leader in low power data logger technology, MadgeTech continuously improves its products and develops solutions to meet ever-changing challenges. The Pulse101A was designed with our customers in mind. MadgeTech offers free firmware upgrades for the life of the product so that data loggers already deployed in the field can grow with new technological developments. Units do not need to be returned to the factory for upgrades. The user can do this automatically from any PC.
|
Input Connection:
|
Removable screw terminal
|
|
|
|
|
Maximum Pulse Rate:
|
10 KHz
|
|
|
|
|
Input Range:
|
0 to 30 VDC continuous
|
|
|
|
|
Input Low:
|
< 0>
|
|
|
|
|
Input High:
|
> 2.8 V
|
|
|
|
|
Internal Weak Pull-Up:
|
<60>
|
|
|
|
|
Input Impedance:
|
>60 k?
|
|
|
|
|
Minimum Pulse Width/
|
? 10 microseconds
|
|
Contact Closure Duration:
|
|
|
|
Reading Rate:
|
1 reading every second up to 1 reading
|
|
|
every 24 hours
|
|
|
•
|
500,000 readings; software configu-
|
|
Memory:
|
|
rable memory wrap
|
|
• 250,000 readings in multiple start/
|
|
|
|
stop mode
|
|
|
|
|
Wrap Around:
|
Yes
|
|
|
|
|
|
Start Modes:
|
•
|
Immediate start
|
|
•
|
Delay start up to 18 months
|
|
|
•
|
Multiple pushbutton start/stop
|
|
|
|
|
|
Stop Modes:
|
•
|
Manual through software
|
|
|
•
|
Timed (specific date and time)
|
|
|
|
|
|
Start and stop the device multiple times
|
|
Multiple Start/Stop Mode:
|
without having to download data or
|
|
|
communicate with a PC
|
|
|
|
|
|
To start the device:
|
|
|
Press and hold the pushbutton for 5
|
|
|
seconds, the green LED will flash during
|
|
Multiple Start/Stop Mode
|
this time. The device has started logging.
|
|
Activation:
|
To stop the device:
|
|
|
Press and hold the pushbutton for 5
|
|
|
seconds, the red LED will flash during this
|
|
|
time. The device has stopped logging.
|
|
|
|
|
Real Time Recording:
|
The device may be used with PC to
|
|
|
monitor and record data in real time
|
|
|
Green LED blinks:
|
|
|
10 second rate to indicate logging
|
|
|
15 second rate to indicate delay start
|
|
LED Functionality:
|
mode
|
|
|
Red LED blinks:
|
|
|
10 second rate to indicate low battery
|
|
|
and/or full memory
|
|
|
|
|
|
Password Protection:
|
An optional password may be programmed into the device to restrict access to configuration options. Data may be read out without the password.
|
|
Engineering Units:
|
Native measurement units can be scaled to display measurement units of another type. This is useful when monitoring outputs from different types of sensors such as flow rate, wind speed and more
|
|
Battery Type:
|
3.6V lithium battery included; user replaceable 10 years typical, dependent upon frequency and duty cycle
|
|
Time Accuracy:
|
±1 minute/month (at 20 ºC/68 ºF, stand alone data logging)
|
|
Computer Interface:
|
USB (interface cable required); 115,200 baud
|
|
Software:
|
XP SP3/Vista/Windows 7/Windows 8
|
|
Operating Environment:
|
-40 ºC to +80 ºC (-40 ºF to +176 ºF), 0 %RH to 95 %RH non-condensing
|
|
Dimensions:
|
1.4 in x 2.5 in x 0.6 in (36 mm x 64 mm x 16 mm)
|
|
Weight:
|
0.9 oz (24 g)
|
|
Materials:
|
ABS Plastic
|
|
Approvals:
|
CE
|
