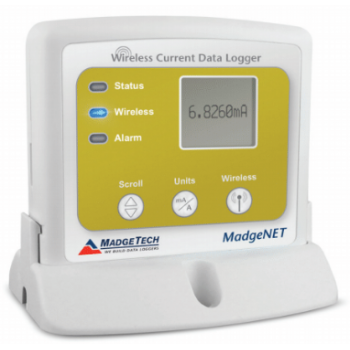

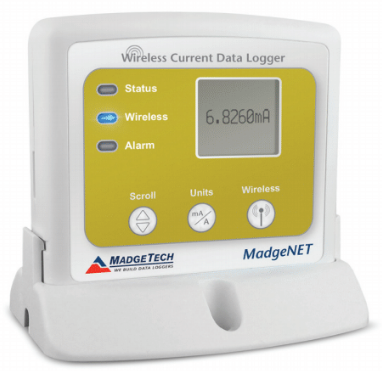

The RFCurrent2000A is a wireless data logger with a digi-tal display, designed to measure and record DC current signals. This data logger can connect directly to low-level DC current sources which makes it ideal for battery usage studies, energy monitoring studies and other DC current monitoring applications. The RFCurrent2000A can also be interfaced with a wide range of current output sensors such as flow meters, pH transmitters and more. Through the software, the device can be programmed with engineering units, which convert the current readings into a different unit of measure such as flow rate. The engineering unit is available for display on the LCD screen as well as in the software. The RFCurrent2000A is available in 20mA, 160mA or a 3A measurement range.
The RFCurrent2000A features an LCD screen which provides instant access to the current reading, minimum, maximum and average statistics. The statistics can be reset through the keypad of the device, allowing customers to keep track of statistics over certain time periods. This feature does not erase the data recorded, but only resets the statistics count. The RFCurrent2000A can be used as a standalone data logger, or used with the RFC1000 wireless transceiver, to transmit data back to a central PC. The RFCurrent2000A transmits up to 500 ft line of sight to the RFC1000 transceiver. Multiple RFC1000’s can be used as repeaters and transmit up to 1000 ft line of sight to other RFC1000’s. This allows the data to be sent over a greater distance.
The RFCurrent2000A can be used as a single, wireless data logging system, or can be expanded to a large scale system, which can include hundreds of data loggers measuring different parameters such as temperature, humidity and more (additional MadgeTech wireless data loggers and transceivers may be required). The RFCurrent2000A utilizes the latest MadgeTech 4 Software. Data can be viewed in graphical or tabular formats and summary and statistics views are available for further analysis. The software features export to Excel®, data annotation, digital calibration and more.
General
|
Reading Rate:
|
1 reading every second up to 1 reading every 24 hours
|
|
|
|
|
|
|
Memory:
|
32,256 readings
|
|
|
|
|
|
|
|
Memory Wrap Around:
|
Yes
|
|
|
|
|
|
|
|
Start Modes:
|
Immediate Start & Delayed Start
|
|
|
|
|
|
|
|
|
•
|
Manual through software
|
|
|
Stop Modes:
|
•
|
Delayed Stop
|
|
|
|
• Timed (specific date and time)
|
|
|
|
|
|
|
Real Time Recording:
|
The device may be used with PC to monitor and record data in real time
|
|
|
|
|
|
|
|
User configurable audible, on-screen, email and text (SMS) alarms.
|
|
|
Alarm:
|
Alarm Delay: A cumulative alarm delay may be set in which the device
|
|
|
|
will activate the alarm (via LED) only when the device has recorded a
|
|
|
|
user specified time duration of data.
|
|
|
|
|
|
|
|
Audible Alarm
|
1 beep per second for reading alarm above/below threshold
|
|
|
Functionality:
|
|
|
|
|
|
|
|
|
|
|
|
• Green LED blinks every 10 seconds to indicate unit is logging
|
|
|
LED Functionality:
|
• Blue LED blinks every 30 seconds to indicate unit is in wireless mode
|
|
|
|
• Red LED blinks every 1 second to indicate alarm condition
|
|
|
|
|
|
|
|
An optional password may be programmed into the device to restrict
|
|
|
Password Protection:
|
access to configuration options. Data may be read out without the
|
|
|
|
password.
|
|
|
|
|
|
|
|
Native measurement units can be scaled to display measurement units
|
|
|
Engineering Units:
|
of another type. This is useful when monitoring voltage outputs from
|
|
|
|
different types of sensors such as temperature, CO2, flow rate and more.
|
|
|
|
|
|
|
Calibration:
|
Digital calibration through software.
|
|
|
|
|
|
|
Calibration Date:
|
Automatically recorded through the device
|
|
|
|
|
|
|
Battery Type:
|
Ultralife 9V Lithium included; user replaceable
|
|
|
|
|
|
|
Battery Life:
|
Approximately 4 years typical for 15 minute reading rate
|
|
|
|
|
|
|
Data Format:
|
uA, mA, A
|
|
|
|
|
|
|
Time Accuracy:
|
±1 minute/month
|
|
|
|
|
|
|
Computer Interface:
|
USB to mini USB, 250,000 baud for standalone operation or RFC1000/
|
|
|
RFC1000-CE/RFC1000-IP69K required for wireless operation
|
|
|
|
|
|
|
|
|
|
Software:
|
XP SP3/Vista/Windows 7/Windows 8 (MadgeTech 4 only)
|
|
|
|
|
|
|
Operating Environment:
|
-20 °C to +60 °C (-4 °F to +140 °F) 0 %RH to 95 %RH non-condensing
|
|
|
|
|
|
|
|
20 mA & 3 A: 3.19 in x 3.5 in x 0.95 in
|
|
|
Dimensions:
|
|
(80.9 mm x 88.9 mm x 24.1 mm) - Data logger only
|
|
|
160 mA: 3.17 in x 3.5 in x 0.95 in
|
|
|
|
|
|
|
|
(80.5 mm x 88.9 mm x 24.1 mm) - Data logger only
|
|
|
|
|
|
|
Weight:
|
4.1 oz (0.2563 lbs)
|
|
|
|
|
|
|
Enclosure Material:
|
ABS Plastic
|
|
|
|
|
|
|
Approvals:
|
US (FCC), CA (IC), CE, South Korea (KCC), China (CMIIT), Japan (LCIE)
|
|
| |
|
|
|
Measurement
|
Sensor Type:
|
Current Sensing Circuitry
|
|
|
|
|
|
|
|
|
|
|
|
|
Nominal Range:
|
|
20 mA
|
160 mA
|
|
|
3 A
|
|
|
|
|
|
|
|
|
|
|
Measurement Range:
|
|
-2 mA to +30 mA
|
-160 mA to +160 mA
|
|
|
-3 A to +3 A
|
|
|
|
|
|
|
|
|
|
|
Maximum Voltage
|
|
|
|
|
|
|
|
Between Inputs to
|
|
2.5 V
|
2.5 V
|
|
|
2.5 V
|
|
|
Ground:
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Measurement
|
0.0005 mA for 20 mA
|
0.005 mA for 160 mA
|
|
|
0.0001 A for 3 A
|
|
|
Resolution:
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Calibrated Accuracy:
|
|
±0.0025 mA
|
±0.01 mA
|
|
|
±0.0001 A
|
|
|
|
|
|
|
|
|
|
|
Input Impedance:
|
|
10 ?
|
1 ?
|
|
|
0.02 ?
|
|
|
|
|
|
|
|
|
|
|
Absolute Maximum
|
|
±232 mA
|
±707 mA
|
|
±5 A for 2 Seconds
|
|
|
Current:
|
|
for 2 Seconds
|
for 2 Seconds
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Input Connection:
|
Terminal Ports: one positive, one negative and a ground terminal port.
|
|
|
|
|
|
|
|
|
|
|
Analog Conversion
|
150 mS
|
|
|
|
|
|
|
Time:
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Frequency Rejection:
|
50+60 Hz
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Temperature
|
< ±50 ppm/°C typical
|
|
|
|
|
|
Coefficient:
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Response Time:
|
0.15 Seconds at Sensor
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Wireless
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
RF Frequency:
|
2.45 GHz IEEE 802.15.4 ultra-low power wireless transceiver
|
|
with fully bi-directional communication
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Band:
|
ISM band 2.405-2.475 GHz Operation (channels 11 through 25)
|
|
|
@ 250 kbps data rate
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Transceiver Sensitivity
|
-95 dBm typical
|
|
|
|
|
|
|
(RFC1000):
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Transmission Distance
|
• RFC1000, RFC1000-CE & RFC1000-IP69K
|
|
|
|
|
2,000 ft max. outdoors - line of sight unobstructed
|
|
|
(to data loggers)
|
|
|
|
|
500 ft max. indoors - typical urban environment
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
•
|
RFC1000
|
|
|
|
|
|
|
|
|
4,000 ft max. outdoors - line of sight unobstructed
|
|
|
|
|
|
1,000 ft max. indoors - typical urban environment
|
|
|
Transmission Distance
|
•
|
RFC1000-CE
|
|
|
|
|
|
|
2,500 ft max. outdoors - line of sight unobstructed
|
|
|
(to other RFC1000’s)
|
|
|
|
|
700 ft max. indoors - typical urban environment
|
|
|
|
|
|
|
|
|
|
|
|
•
|
RFC1000-IP69K
|
|
|
|
|
|
|
|
|
4,000 ft max. outdoors - line of sight unobstructed
|
|
|
|
|
|
1,000 ft max. indoors - typical urban environment
|
|
|
|
|
|
|
|
|
|
|
