The RHTemp2000 is perfect for applications requiring instant remote readings of environmental parameters, including temperature and humidity.

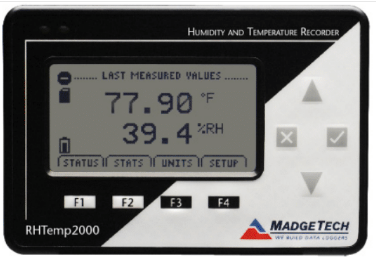

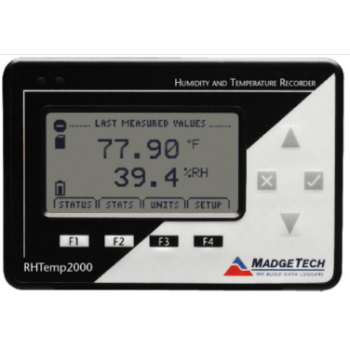

The 8-button keypad and large LCD provide convenient access to current data and recorder setup. Additionally, memory and battery levels, external power status, and sampling and recording status are shown on the LCD.
Available on-screen data includes: statistics (min, max, average) for all two channels; recording status (start, stop and recording rate); display options (channels shown, units, text size); and calibration information (date calibrated, date for recalibration). Statistics can be cleared at any time during logging.
With 131,071 readings per channel, the RHTemp2000 has one of the largest memory capacities of any similar data recorder on the market. The non-volatile memory will retain recorded data, even if AC and battery power are lost.
The RHTemp2000 runs on a 9V battery with a typical battery life of 1 year, at a 1 min reading rate with the display off. With continuous LCD and no backlight usage, the average battery life is 30 days.For power savings, both the LCD and backlight have configurable auto-off options.Those wanting to keep the LCD display and backlight continuously active need only to connect the unit to an AC power supply, keeping the 9V battery connected as a back-up.
N.I.S.T. traceable calibration is available for users needing to meet regulatory requirements. Creating permanent records,performing data calculations, and the graphing of data is quick and easy: Simply connect the interface cable to an available USB port and, with a few clicks of the mouse, data is downloaded and ready for review or export to Excel.
TEMPERATURE
|
Range:
|
-20 to +60ºC
|
|
Resolution:
|
0.1ºC
|
|
Calibrated Accuracy:
|
±0.5ºC (0 to +50ºC)
|
HUMIDITY
|
Range:
|
0 to 95%RH
|
|
Resolution:
|
0.1%RH
|
|
Calibrated Accuracy:
|
±3%RH (±2%RH typical at 25ºC)
|
|
Specified Accuracy Range:
|
+10 to +40°C, 10 to 80%RH
|
DOT-MATRIX LCD
|
Dimensions:
|
2.5” x 1.375” (63mm x 35mm)
|
|
Text:
|
Configurable channel text size
|
|
i ndicators:
|
Power, status, memory
|
|
Backlight:
|
Configurable w/auto shut-off and contrast adjustment
|
|
Start/Stop Time:
|
Software programmable start time and date, up to six months in advance; programmable stop time
|
|
Memory:
|
131,071 readings per channel; 262,143 total readings; software configurable memory wrap
|
|
Reading Rate:
|
1 reading every 2 seconds to 1 every 24 hours
|
|
Calibration:
|
Digital calibration through software
|
|
Calibration Date:
|
Automatically recorded within device
|
|
Battery Type:
|
9V lithium battery included, user replaceable; optional AC adapter
|
|
Battery Life:
|
1 year battery life at 1 min reading rate with display off. 30 days typical with continuous LCD and no backlight usage.
|
|
Unit Display:
|
Date and time stamped ºC, ºF, K, ºR ; %RH, mg/ml water vapor concentration, dew point
|
|
Time Accuracy:
|
±1 minute/month (at 20º to 30°C)
|
|
Computer Interface:
|
USB (interface cable required); 115,200 baud
|
|
Software:
|
XP SP3/VIsta/Windows 7
|
|
Operating Environment:
|
-20 to +60ºC, 0 to 95%RH non-condensing
|
|
Dimensions:
|
4.8” x 3.3” x 1.25” (122mm x 84mm x 32mm)
|
|
Weight:
|
16 oz (440 g)
|
|
Enclosure:
|
Black anodized aluminum
|
|
Approvals:
|
CE
|
