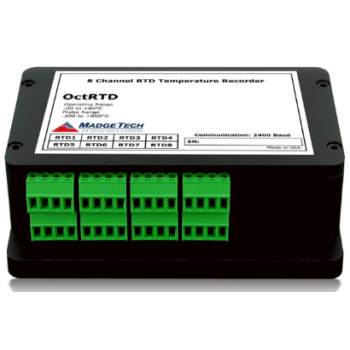

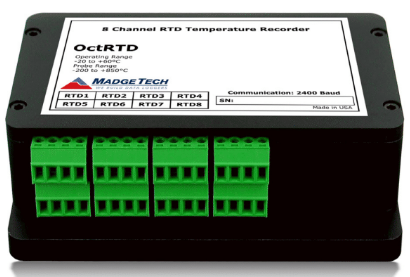

The OctRTD is an 8 channel, battery powered, stand alone, RTD based temperature recorder. This is an all-in-one compact, portable, easy to use device that will measure and record up to 10,922 measurements per channel. The storage medium is non-volatile solid state memory, providing maximum data security even if the battery becomes discharged. The device can be started and stopped directly from your computer and its small size allows it to fit almost anywhere. The OctRTD makes data retrieval quick and easy. Simply plug it into an empty COM or USB port and our user-friendly software does the rest.
Temperature
|
Measurement Range:
|
-200 ºC to +850 ºC (-328 ºF to +1562 ºF)
|
|
Resolution:
|
0.01 ºC (0.018 ºF)
|
|
Calibrated Accuracy:
|
±0.1 ºC @ 25 ºC ambient
|
|
Specified Accuracy Range:
|
-200 ºC to +850 ºC (-328 ºF to +1562 ºF
|
Resistance
|
Nominal Range:
|
0 to 500 ?
|
|
Resolution:
|
0.001 ?
|
|
Calibrated Accuracy:
|
±0.030 ? @ 25 ºC ambient
|
|
Specified Accuracy Range:
|
0 to 500 ?
|
|
Channels:
|
8
|
|
Input Connection:
|
Removable screw terminal; 2, 3 or 4 wire interface
|
|
Temperature Effect on Span:
|
< 2>
Temperature specifications based on ideal 100 ? Pt RTD compliant with IEC 751 (1983) and ITS-90, 5000 ? FSR (accuracy based on 36 in lead wire RTD with 4 wire configuration)
Calibrated accuracies based on standard MadgeTech calibrations for 0 to 200 ? range.
|
|
Start Modes:
|
Software programmable immediate start or delay start up to six months in advance, programmable in software
|
|
Real Time Recording:
|
May be used with PC to monitor and record data
|
|
|
in real time
|
|
|
|
|
|
|
|
|
|
Memory:
|
10,922 readings per channel, for a total of 87,376
|
|
|
readings
|
|
|
|
|
|
|
|
|
|
Reading Rate:
|
1 reading every 2 seconds up to 1 reading
|
|
|
every 12 hours
|
|
|
|
|
|
|
|
|
|
Calibration:
|
Digital calibration through the software
|
|
|
|
|
|
|
Calibration Date:
|
Automatically recorded within device
|
|
|
|
|
|
|
Battery Type:
|
9V lithium or alkaline battery included,
|
|
|
user replaceable
|
|
|
|
|
|
|
|
|
|
Battery Life:
|
1 year typical
|
|
|
|
|
|
|
Data Format:
|
Date and time stamped ºC, ºF, K, ºR; ?
|
|
|
|
|
|
|
Time Accuracy:
|
±1 minute/month
|
|
|
(at +20 ºC (+68 ºF), RS232 port not in use)
|
|
|
|
|
|
|
|
|
|
Computer Interface:
|
PC serial or USB (interface cable required);
|
|
|
2,400 baud
|
|
|
|
|
|
|
|
|
|
Software:
|
XP SP3/Vista/Windows 7/Windows 8
|
|
|
|
|
|
|
Operating Environment:
|
-20 ºC to +60 ºC (-4 ºF to +140 ºF),
|
|
|
0 %RH to 95 %RH non-condensing
|
|
|
|
|
|
|
|
|
|
Dimensions:
|
3.5 in x 4.4 in x 1.5 in
|
|
|
(89 mm x 112 mm x 39 mm)
|
|
|
|
|
|
|
|
|
|
Weight:
|
15.9 oz (450 g)
|
|
|
|
|
|
