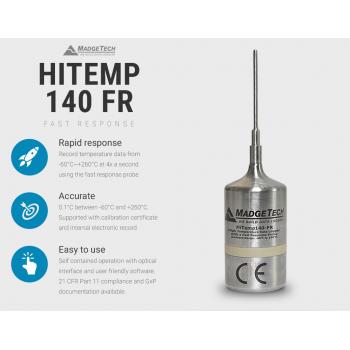

MadgeTech has designed the HiTemp140-FR, a high temperature data logger with an ultra-fast response time, to record temperature during rapidly changing thermal processes. This high temperature data logger features a 2 inch x 0.0625 inch diameter probe and is capable of recording up to 4 Hz, which is 4 times faster than other data loggers in this class. This allows the temperature sensor to quickly adapt and accurately record temperature variations in changing environments. Applications include oven profiling, steam sterilization, chamber mapping, seafood processing, flash freezing and more.
MadgeTech’s entire HiTemp140 data logger series is designed with food grade stainless steel. The device can be placed in environments up to 140 °C and the probe is capable of measuring from -200 °C to +260 °C (-328 °F to +500 °F). The HiTemp140-FR is also available with an optional thermal shield enclosure to extend the operating range of the data logger to -200 °C to +250 °C (-328 °F to +482 °F). The HiTemp140-FR-TSK (Thermal Shield Kit) comes with either a vented or flush top enclosure to accommodate a multitude of applications.
The Trigger Settings feature of the HiTemp140-FR allows users to configure high and low temperature thresholds that when met or exceeded, will automatically start or stop recording data to memory. This data logger is capable of storing up to 32,700 date and time stamped readings and features a nonvolatile solid state memory which retains data even if the battery becomes discharged.
The HiTemp140-FR Fast Response High Temperature Data Logger is available for $499.00, or the Hi-Temp140-FR-TSK Data Logger and Thermal Shield Kit is available for $549.00, with volume discounts available.
Temperature
|
Temperature Sensor:
|
100 ? Platinum RTD
|
|
|
|
|
|
|
|
|
|
Probe Measurement Range:
|
-200 ºC to +260 ºC (-328 ºF to +500 ºF)
|
|
|
|
|
|
|
|
|
Temperature Resolution:
|
0.01 ºC (0.02 ºF)
|
|
|
|
|
|
|
|
|
|
Calibrated Accuracy:
|
±0.1 ºC/±0.18 ºF (20 ºC to +140 ºC/68 ºF to +284 ºF)
|
|
|
|
|
|
|
|
|
|
General
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
In Air
|
|
In Water
|
|
|
Data Logger Response Time:
|
|
|
|
|
|
|
t60
|
- 00:00:39:00
|
t60
|
- 00:00:10:00
|
|
|
|
|
|
|
t90
|
- 00:02:71:00
|
t90
|
- 00:00:12:00
|
|
|
|
|
|
|
|
Reading Rate:
|
4 readings per second up to 1 reading every 24 hours
|
|
|
|
|
|
|
|
|
Memory:
|
32,767 readings
|
|
|
|
|
|
|
|
|
Start Modes:
|
• Software programmable immediate start
|
|
|
• Delay start up to 18 months in advance
|
|
|
|
|
|
|
|
|
|
Stop Modes:
|
Manual or Timed (specific date and time)
|
|
|
|
|
|
|
|
|
High & Low limits may be set. Once data meets or exceed
|
|
|
Trigger Settings:
|
sets limits, the device will record to memory. Bi-level start
|
|
|
and stop triggers can also be programmed. Users can specify
|
|
|
|
|
|
|
the number of readings to take after the device triggers.
|
|
|
|
|
|
|
|
|
|
Readings in Trigger
|
10,922 readings
|
|
|
|
|
Settings Mode:
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Real Time Recording:
|
May be used with PC to monitor & record data in real time
|
|
|
|
|
|
|
Password Protection:
|
An optional password may be programmed into the device
|
|
|
to restrict access to configuration options. Data may be
|
|
|
|
read without the password.
|
|
|
| |
|
|
|
|
|
|
Memory Wrap Around:
|
Yes
|
|
|
|
|
|
|
Battery Type:
|
3.6V high-temperature lithium battery included; user replaceable
|
|
|
|
|
|
|
Battery Life:
|
2 years typical (1 minute reading rate)
|
|
|
|
|
|
|
Calibration:
|
Digital calibration through software
|
|
|
|
|
|
|
Calibration Date:
|
Automatically recorded within device
|
|
|
|
|
|
|
Data Format:
|
Date and time stamped °C, °F, °R, K
|
|
|
|
|
|
|
Time Accuracy:
|
±1 minute/month at 25 ºC
|
|
|
Extended Operation: ±20 minutes/month at 140 °C (±450 ppm)
|
|
|
|
|
|
|
|
|
|
Computer Interface:
|
IFC400 or IFC406 USB docking station required; 125,000 baud
|
|
|
|
|
|
|
Operating System
|
XP SP3/Vista/Windows 7/Windows 8
|
|
|
Compatibility:
|
|
|
|
|
|
|
|
|
|
MadgeTech Software
|
• MadgeTech Standard Software version 4.2.3.0 or later
|
|
|
Compatibility:
|
• MadgeTech Secure Software version 4.2.2.0 or later
|
|
|
|
|
|
|
Operating Environment:
|
-40 ºC to +140 ºC (-40 ºF to +284 ºF),
|
|
|
0 %RH to 100 %RH, 0.002 PSIA to 100 PSIA
|
|
|
|
|
|
|
|
|
|
IP Rating:
|
IP68
|
|
|
|
|
|
|
Dimensions (body):
|
1.89 in x 0.970 in x 0.970 in (48 mm x 24.6 mm x 24.6 mm)
|
|
|
|
|
|
|
Dimensions (probe):
|
1.75 in x 0.0625 in dia. (0.188 in transitional dia.)
|
|
|
44.5 mm x 1.59 mm (4.78 mm Transitional dia.)
|
|
|
|
|
|
|
|
|
|
Weight:
|
65 g (2.3 oz)
|
|
|
|
|
|
|
Materials:
|
316 Stainless Steel, PEEK
|
|
|
|
|
|
|
Approvals:
|
CE
|
|
| |
|
|
