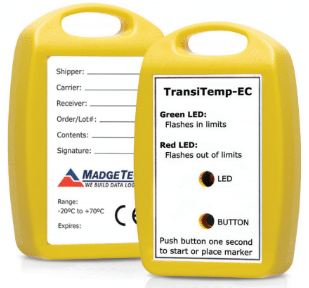

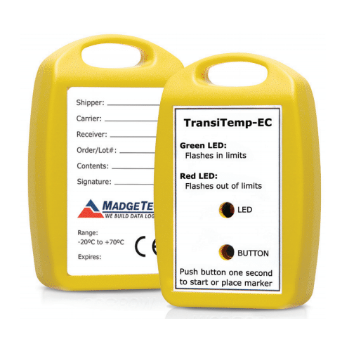

The TransiTemp-EC temperature recorder is designed for high volume, low cost in-transit recording. It has a custom molded case with a handle for convenient attachment and comes in single and multi use versions. This compact, portable, easy to use device will measure and record up to 8,191 measurements. The storage medium is non-volatile solid state memory, providing maximum data security even if the battery becomes discharged.
The device can be started from a computer or by holding down the recessed push button. Dual LED’s provide device status and alarm condition for immediate validation when received. The green LED indicator blinks four times when the device has been started. It continues to blink in ten second intervals while the device is logging. If an alarm condition occurs, the red LED indicator blinks in ten second intervals. The red LED blinks four times when the device stops taking data. The TransiTemp-EC makes data retrieval quick and easy. Simply plug it in to an empty COM or USB port and the data can be offloaded and analyzed/ archived with our powerful software.
|
Temperature Sensor:
|
Semiconductor
|
|
|
|
|
Temperature Range:
|
-20 ºC to +70 ºC (-4 °F to +158 °F)
|
|
|
|
|
Temperature Resolution:
|
0.1 ºC
|
|
|
|
|
Accuracy:
|
±0.5 ºC (-10 ºC to +40 ºC),
|
|
|
±1.0 ºC (-20 ºC to +70 ºC)
|
|
|
|
|
Usage:
|
Single/Multi-Use versions available
|
|
|
|
|
Memory:
|
8,191 readings
|
|
|
(> 85 days at 1 reading/15 minutes)
|
|
|
|
|
Reading Interval:
|
1 reading every 5 seconds up to 1 every
|
|
|
30 minutes, selectable in software
|
|
|
|
|
|
Pushbutton start or software
|
|
Start Time:
|
programmable immediate start or
|
|
|
delay start up to thirty days in advance.
|
|
|
|
|
Data Format:
|
Date and time stamped ºC, ºF
|
|
|
|
|
Time Accuracy:
|
±2 minute/month at +25 ºC
|
|
|
|
|
Temperature Alarm:
|
Programmable temperature alarm with high and low limits selectable in software; When logged data reaches or exceeds either limit, red LED blinks every ten seconds
|
|
Activity Indicator:
|
- The green LED blinks every 10 seconds to indicate device is logging.
- The red LED blinks when an alarm condition exists.
|
|
Marking Feature:
|
While logging hold the push button for 2 seconds to data and time stamp data point
|
|
Battery Type:
|
3V lithium coin cell included, 2 year shelf life; user replaceable
|
|
Battery Life:
|
90 days typical at +25 ºC, 5 minute reading rate
|
|
Computer Interface:
|
PC serial (interface cable required); 38,400 baud
|
|
Software:
|
XP SP3/Vista/Windows 7/Windows 8
|
|
Operating Environment:
|
-20 ºC to +70 ºC (-4 °F to +158 °F), 0 %RH to 90 %RH non-condensing
|
|
Dimensions:
|
1.7 in x 2.6 in x 0.6 in (44 mm x 67 mm x 16 mm)
|
|
Weight:
|
0.9 oz (25 g)
|
|
Material:
|
ABS plastic
|
|
Approvals:
|
CE
|
