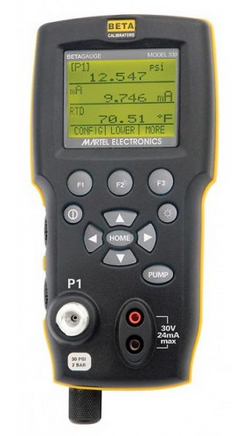

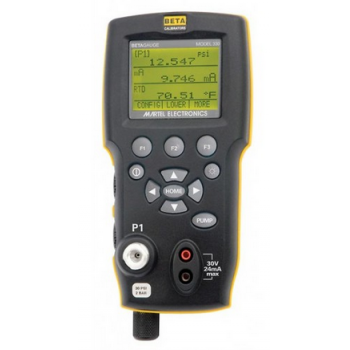

The BetaGauge 330 is a revolution in pressure calibration technology for the process industries. With the 330, technicians have a small, lightweight calibrator that generates from high vacuum to 300 PSI using a high performance integral electric pump. Gone is the drudgery of manual pumping or using large, heavy and unwieldy boxes with limited portability and poor battery life. The BetaGauge 330 has a form factor only slightly larger than Martel’s popular BetaGauge 321 and weighs in at a mere 2.5 pounds. The housing is contoured to easily fit a technician’s hand with good balance top to bottom. Performance doesn’t stop with the pump. The BetaGauge 330 provides ±0.035% of full scale accuracy on its internal, pressure sensor. Temperature compensation on its internal sensor ensures accuracy in field applications. An external pressure module connection supports all 29 ranges of BetaPort-P pressure modules for even greater measurement capability A Pt100 RTD input is provided for temperature measurements accurate to ±0.1 °C (0.2 °F). In addition, the BetaGauge 330 measures and simulates 4-20 mA loop current signals. It can measure up to 30 VDC. An internal 24 VDC Instrument Power Supply supplies power to a transmitter under test. Like its calibrator siblings, the 330 displays up to 3 calibration values at one time from the choice of internal pressure sensor, external pressure sensor temperature from the optional RTD probe or electrical (mA or VDC). The display is a large back lit graphics style LCD that’s easy to read in any lighting condition.
|
Specifications
|
|
Ranges
|
|
Available Pressure
|
|
PSIG:
|
-12 to 30 PSI / -0.8 to 2 bar
-12 to 150 PSI /-0.8 to 10 bar
-12 to 300 PSI / -0.8 to 20 bar
|
|
PSIA:
|
0 to 30 PSIA /0 to 2 bar A
0 to 150 PSIA /0 to 10 bar A
|
|
mA
|
0 to 24 mA, max, load 1000 Ohms
|
|
RTD
|
Pt100-385, -40 to 150?C
|
|
Engineering Units
|
psi, bar, mbar, kPa, MPa, kg/cm2, cmH2O@4°C, cmH2O@20°C
mmH2O@4°C, mmH2O@20°C, mmHg@0°C, inH2O@4°C,
inH2O@20°C, inH2O@60°F, inHg@0°C
|
|
Instrument Power Supply
|
24 VDC at 24 mA
|
|
Accuracy
|
|
Pressure
|
±0.035% of full scale on internal sensor
module dependent for external sensors
Add 0.002% FS/?C outside of 15 to 35?C
|
|
mA
|
±0.015% of reading ± 2 counts
(simulation and measurement)
|
|
Volts
|
±0.015% of reading ± 2 counts
(measurement only)
|
|
Temperature
|
±0.1°C (0.2°F) (measurement only)
|
|
General
|
(Pt100 RTD)
|
|
Integrated internal electrically operated pneumatic pump:
|
generates -12 PSI to 300 PSI pressure (-0.8 to 20 Bar, -80 to 2000 kPa)
|
|
Environmental
|
Operating Temperature -10 °C to +50 °C
Storage Temperature -20 °C to +60 °C
|
|
Power Requirements
|
|
Battery
|
Eight (8) standard Alkaline AA batteries
|
|
Battery Life
|
100 pump cycles to 300 PSI minimum
|
|
Physical
|
1000 pump cycles to 30 PSI
|
|
Dimensions
|
8” high x 4” wide x 2-3/8” deep
(20 cm x 10 cm x 6 cm)
|
|
Weight
|
2.5 pounds (1.2 kg)
|
|
Connections
|
|
Pressure:
|
1/8” female NPT - Stainless Steel
|
|
Electrical:
|
standard banana jacks
|
|
RTD:
|
4 pin LEMO style
|
|
Included Accessories - NIST traceable calibration
|
|
certificate, batteries installed, test leads, test hose,
|
|
fittings, user guide, carrying case.
|
