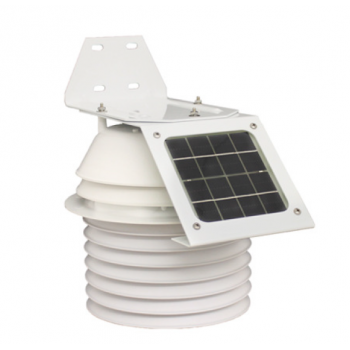

Add a temperature/humidity sensor with 24-hour fan-aspirated radiation shield to your Vantage Pro2 system. Use with the Anemometer/Sensor Transmitter Kit for flexibility in siting options.
General
Operating Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . -40° to +150° F (-40° to +65° C)
Storage Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . -40° to +158° F (-40° to +70° C)
Sensor Type:
Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . PN junction silicone diode
Relative Humidity. . . . . . . . . . . . . . . . . . . . . . . . . . . Film capacitor element
Cable Length. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 feet (4.6 meters)
Dimensions
6380: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1" high x 9.5" wide x 7.8" deep (206 mm x 241 mm x 198 mm)
6382. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.1" high x 9.5" wide x 7.8" deep (206 mm x 241 mm x 198 mm)
Weight
6380. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.5 lbs. (1.6 kg)
6382. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.6 lbs. (3.0 kg)
Sensor Output
Relative Humidity
Resolution and Units . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1%
Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 to 100% RH
Accuracy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±2%
Drift . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . up to ±2% per year
Update Interval . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 seconds
Alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . High and Low Threshold from Current Reading
