Beamex PGHH Pump -- Portable Pressure Calibrator

Product

Home / Product

Category: PRESSURE, CALIBRATORS

Model: Hand Pump, Portable Calibrators, Portable Calibrator, Hand Pumps

Avaibility: AVAILABLE

Call For Price

Datasheet

Description
Specification

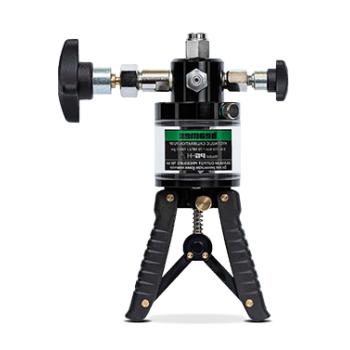

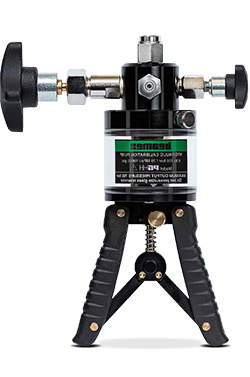

The PGHH is a hand-operated, hydraulic, high-pressure generator compatible with different liquids (e.g. mineral oil, distilled water, etc.). The pump is equipped with an adjustable volume control for fine-tuning generated pressure. PGHH also includes a prime/high stroke selector for easy use.

PGHH
Output pressure:	0…700 bar / 0…10,000 psi
Pressure media:	Distilled water or low viscosity mineral oil
Output connectors:	G1/4" B female for Beamex external pressure modules EXT60 …1000 G1/4" female preinstalled Bx 1215 fitting for Beamex 630 bar (9100 psi) hoses
Dimensions:	265 mm x 160 mm x 120 mm 10.4" x 6.3" x 4.7"
Weight:	1.3 kg / 2.87 lb
Standard delivery:	630 bar 1.0 m hose 1/4" NPT fitting for the hose seals and washers filling bottle with a cap hard carrying case
Optional accessories: • hard carrying case 630 bar / 1000 bar pressure hoses and fittings
