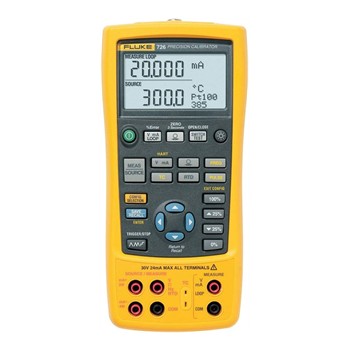

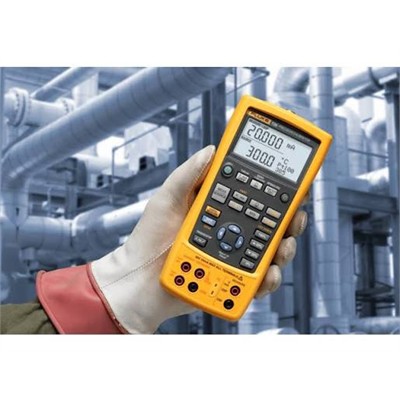

Fluke 726 PRECISION MULTIFUNCTION CALIBRATORS

Product

Category: CALIBRATORS

Model: Multifunction Calibrators

Avaibility: AVAILABLE

Call For Price

Datasheet

-10.00 mV to +75.00 mV

726 Specifications

Function Measure or Source	Range or Type	Resolution	Accuracy	Notes
Voltage	0 to 100 mV 0 to 20 V (source) 0 to 30 V (measure)	0.01 mV 0.01 V 0.01 V	0.01 % Rdg + 2 LSD	Max load, 1 mA
mA	0 to 24	0.001 mA	0.01 % Rdg + 2 LSD	Max load, 1000 ?
mV (TC terminals)	-10.00 mV to +75.00 mV	.01 mV	0.01 % of range + 1 LSD
Resistance	5 ? to 4000 ?	? 0.01 ? to 0.1 ?	0.015 %
Frequency	2.0 to 1,000 CPM 1 to 1100 Hz 1.0 to 10.0 kHz 10.0 to 15.0 kHz	0.1 CPM 1 Hz 0.1 kHz 0.1 kHz	± 0.05 % ± 0.05 % ± 0.25 % ± 0.5 %	For frequency source; 1 V to 20 V p-p squarewave, -0.1 V offset
Loop Supply	24 V dc	N/A	10 %
Thermocouples	J, K, T, E, L, N, U, C, BP, XK	0.1 °C, 0.1 °F	to 0.2 °C
Thermocouples	B, R, S	1 °C, 1 °F	to 1.2 °C
RTDs	Cu 10 Ni 120 (672) Pt 100, 200, 500, 1000 (385) Pt 100 (3916), Pt 100 (3926) Cu 10	0.1 °C, 0.1 °F 0.01 °C, 0.01 °F	to 1.8 °C to 0.15 °C

Simultaneous Function Capability	Channel A	Channel B
24.000 mA DC	M	M or S
24.000 mA DC with 24 V loop supply	M
100.00 mV DC		M or S
30.000 V DC measure	M
20.000 V DC measure, 20.000 VDC Source		M or S
5 to 4000 Ohms		M or S
Thermocouple J, K, T, E, R, S, B, M, L, U, N, C, BP, XK		M or S
RTD Ni120; Pt100 (392); Pt100 (JIS); Pt100, 200, 500, 1000 (385), Cu 10		M or S
Pressure (requires Fluke 700PXX Modules)	M	M used as S
Frequency; Squarewave, 1 CPM to 10 kHz; fixed amplitude 5 V p-p		M or S

M = Measure, S = Source/Simulate
