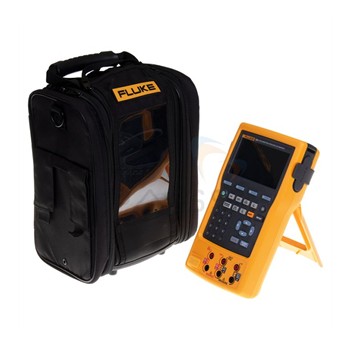

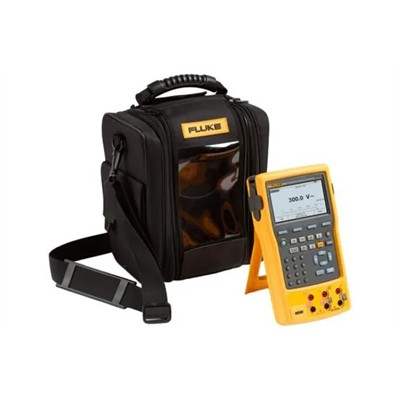

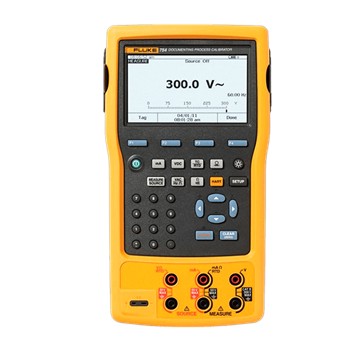

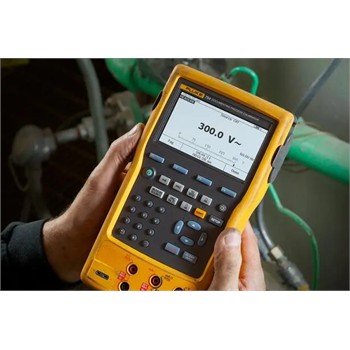

Specifications: Fluke 754 Documenting Process Calibrator-HART
Specifications: Fluke 754 Documenting Process Calibrator-HART
Measurement Accuracy
| Parameter | Range / Resolution | 1 Year | 2 Years |
| Voltage DC | 100.000 mV 3.00000 V 30.0000 V 300.00 V | 0.02% + 0.005 mV 0.02% + 0.00005 V 0.02% + 0.0005 V 0.05% + 0.05 V | 0.03% + 0.005 mV 0.03% + 0.00005 V 0.03% + 0.0005 V 0.07% + 0.05 V |
| Voltage AC | 3.000 V (40 Hz to 500 Hz) / 0.001 V 30.00 V (40 Hz to 500 Hz) / 0.01 V 300.0 V (40 Hz to 500 Hz) / 0.1 V | 0.5% + 0.002 V 0.5% + 0.02 V 0.5% + 0.2 V | 1.0% + 0.004 V 1.0% + 0.04 V 1.0% + 0.2 V |
| Current DC | 30.000 mA 110.00 mA | 0.01% + 5 uA 0.01% + 20 uA | 0.015% + 7 uA 0.015% + 30 uA |
| Resistance | 10.000 ? 100.00 ? 1.0000 k? 10.000 k? | 0.01% + 10 m? 0.01% + 20 m? 0.02% + 0.2 ? 0.02% + 3 ? | 0.015% + 15 m? 0.015% + 30 m? 0.03% + 0.5 ? 0.03% + 5 ? |
| Frequency | 1.00 to 110.00 Hz / 0.01 Hz 110.1 to 1100.0 Hz / 0.1 Hz 1.101 to 11.000 kHz / 0.001 kHz 11.01 to 50.000 kHz / 0.01 kHz | 0.05 Hz 0.5 Hz 0.005 kHz 0.05 kHz | (Sama dengan kolom 1 Tahun / Not specified separately) |
Source Accuracy
| Parameter | Range / Resolution | 1 Year | 2 Years |
| Voltage DC | 100.000 mV 1.00000 V 15.0000 V | 0.01% + 0.005 mV 0.01% + 0.00005 V 0.01% + 0.0005 V | 0.015% + 0.005 mV 0.015% + 0.00005 V 0.015% + 0.0005 V |
| Current DC | 22.000 mA (source) Current sink (simulate) | 0.01% + 0.003 mA 0.02% + 0.007 mA | 0.02% + 0.003 mA 0.04% + 0.007 mA |
| Resistance | 10.000 ? 100.00 ? 1.0000 k? 10.000 k? | 0.01% + 10 m? 0.01% + 20 m? 0.02% + 0.2 ? 0.02% + 3 ? | 0.015% + 15 m? 0.015% + 30 m? 0.03% + 0.5 ? 0.03% + 5 ? |
| Frequency | 0.1 to 10.99 Hz 0.01 to 10.99 Hz 11.00 to 109.99 Hz 110.0 to 1099.9 Hz 1.100 to 21.999 kHz 22.000 to 50.000 kHz | 0.01 Hz 0.01 Hz 0.1 Hz 0.1 Hz 0.002 kHz 0.005 kHz | (Sama dengan kolom 1 Tahun) |
Technical Data
| Category | Parameter / Function | Details |
| Data log functions | Measure functions | Voltage, current, resistance, frequency, temperature, pressure |
| Reading rate | 1, 2, 5, 10, 20, 30, or 60 readings/minute |
| Maximum record length | 8000 readings (7980 for 30 or 60 readings/minute) |
| Ramp functions - Source functions - Rate - Trip detect | Voltage, current, resistance, frequency, temperature 4 steps/second Continuity or voltage (continuity detection not available when sourcing current) |
| Loop power function | Voltage | Selectable, 26 V |
| Accuracy | 10%, 18 V minimum at 22 mA |
| Maximum current | 25 mA, short circuit protected |
| Maximum input voltage | 50 V DC |
| Step functions | Source functions | Voltage, current, resistance, frequency, temperature |
| Manual step | Selectable step, change with arrow buttons |
| Autostep | Fully programmable for function, start delay, step value, time per step, repeat |
