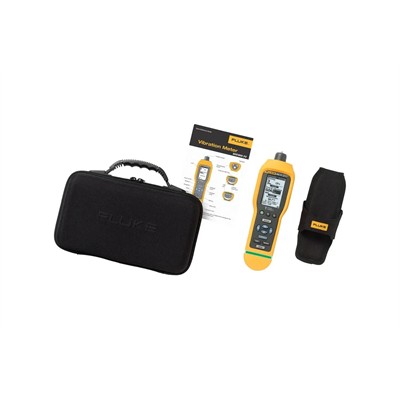

| Vibration Meter |
| Low frequency range (overall measurement) | 10 Hz to 1,000 Hz |
| High frequency range (CF+ measurement) | 4,000 Hz to 20,000 Hz |
| Severity levels | Good, satisfactory, unsatisfactory, unacceptable |
| Vibration limit | 50 g peak (100 g peak-peak) |
| A/D converter | 16-bit |
| Signal to noise ratio | 80 dB |
| Sampling rate | Low frequency | 20,000 Hz |
| High frequency | 80,000 Hz |
| Real time clock backup | Coin battery |
| Sensor |
| Sensitivity | 100 mV g ±10% |
| Measurement range | 0.01 g to 50 g |
| Low frequency range (overall measurement) | 10 Hz to 1,000 Hz |
| High frequency range | 4,000 Hz to 20,000 Hz |
| Resolution | 0.01 g |
| Accuracy | At 100 Hz ±5% of measured value |
| Amplitude Units |
| Acceleration | g, m/sec² |
| Velocity | in/sec, mm/sec |
| Displacement | mils, mm |
| Infrared Thermometer (Temperature Measurement) |
| Range | -20°C to 200°C (-4°F to 392°F) |
| Accuracy | ±2°C (4°F) |
| Focal length | Fixed, at ~3.8 cm (1.5 in) |
| External sensor |
| Fluke supports but does not provide external sensors |
| Frequency range | 10 Hz to 1,000 Hz |
| Bias voltage (to supply power) | 20 VDC to 22 VDC |
| Bias current (to supply power) | Maximum 5 mA |
| Firmware |
| External interfaces | USB 2.0 (full speed) communication |
| Data capacity | Database on internal flash memory |
| Upgrade | Through USB |
| Memory | Up to 3,500 measurements |
| Radiated Emission |
| Electrostatic discharge: burst | Standard EN 61000-4-2 |
| Electromagnetic interference | Standard EN 61000-4-3 |
| RE | Standard CISPR 11, Class A |
| Environmental |
| Operating temperature | -20°C to 50°C (-4°F to 122°F) |
| Storage temperature | -30°C to 80°C (-22°F to 176°F) |
| Operating humidity | 10% to 95% RH (non-condensing) |
| Operating/storage altitude | Sea level to 3,048 meters (10,000 feet) |
| IP rating | IP54 |
| Vibration limit | 500 g peak |
| Drop test | 1 meter |
| General Specifications |
| Battery type | AA (2) Lithium Iron Disulfide |
| Battery life | 250 measurements |
| Size (L x W x H) | 24.1 x 7.1 x 5.8 cm (9.5 x 2.8 x 2.3 in) |
| Weight | 0.40 kg (0.89 lb) |
| Connectors | USB mini-B 7-pin, stereo audio output jack (3.5 mm Audio Plug), external sensor jack (SMB connector) |
