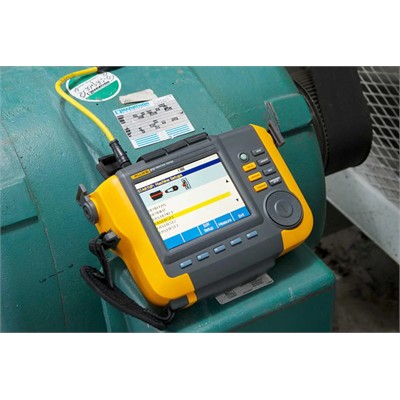

Specifications: Fluke 810 Vibration Tester
Specifications: Fluke 810 Vibration Tester
| Diagnostic Specifications |
| Standard Faults | Unbalance, looseness, misalignment and bearing failures |
| Analysis For | Motors, fans, blowers, belts and chain drives, gearboxes, couplings, centrifugal pumps, piston pumps, sliding vane pumps, propeller pumps, screw pumps, rotary thread/gear/lobe pumps, piston compressors, centrifugal compressors, screw compressors, closed coupled machines, spindles |
| Motor Rotational Speed Range | 200 rpm to 12000 rpm |
| Diagnosis Details | Plain-text diagnosis, fault severity (slight, moderate, serious, extreme), repair details, cited peaks, spectra |
| Electrical Specifications |
| Ranging | Automatic |
| A/D Converter | 4 channel, 24 bit |
| Usable Bandwidth | 2 Hz to 20 kHz |
| Sampling | 51.2 Hz |
| Digital Signal Processing Functions | Automatically configured anti-alias filter, high-pass filter, decimation, overlapping, windowing, FFT, and averaging |
| Sampling Rate | 2.5 kHz to 50 kHz |
| Dynamic Range | 128 dB |
| Signal To Noise Ratio | 100 dB |
| FFT Resolution | 800 lines |
| Spectral Windows | Hanning |
| Frequency Units | Hz, orders, cpm |
| Amplitude Units | in/sec, mm/sec, VdB (US), VdB* (Europe) |
| Non-volatile Memory | SD micro memory card, 2 GB internal + user accessible slot for additional storage |
| General Specifications |
| Dimensions (H x D x W) | 18.56 x 7.00 x 26.72 cm (7.30 x 2.76 x 10.52 in) |
| Weight (With Battery) | 1.9 kg (4.2 lb) |
| Display | ¼ VGA, 320 × 240 Color (5.7 inch diagonal) TFT LCD with LED backlight |
| Input/Output Connections | Triaxial sensor connection | 4 pin M12 connector |
| Single axis sensor connection | BNC connector |
| PC Connection | Mini ‘B’ USB (2.0) connector |
| Battery | Battery type | Lithium-ion, 14.8 V, 2.55 Ah |
| Battery charging time | Three hours |
| Battery discharge time | Eight hours (under normal conditions) |
| AC Adapter | Input voltage | 100 VAC to 240 VAC |
| Input frequency | 50/60 Hz |
| Operating System | WinCE 6.0 Core |
| Language Support | English, French, German, Italian, Japanese, Portuguese, Simplified Chinese, Spanish |
| Warranty | Three-years |
| Environmental Specifications |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Operating Humidity | 10% to 95% RH (non-condensing) |
| Agency Approvals | CHINA RoHS, CSA, CE, C TICK, WEEE |
| Electromagnetic Compatibility | EN 61326-1:2006, EN 61010:1:2001 2nd ed. |
| Sensor Specifications |
| Sensor Type | Accelerometer |
| Sensitivity | 100 mV/g (±5%, 25°C) |
| Acceleration Range | 80 g peak |
| Amplitude Nonlinearity | 1% |
| Frequency Response | Z | 2 - 7,000 Hz ±3dB |
| X, Y | 2 - 5,000 Hz ±3dB |
| Power Requirement (IEPE) | 18 VDC to 30 VDC, 2 mA to 10 mA |
| Bias Output Voltage | 12 VDC |
| Grounding | Case grounded |
| Sensing Element Design | PZT ceramic / shear |
| Case Material | 316L stainless steel |
| Mounting | 10-32 captive socket head screw, 2-pole rare earth magnet (48 lb pull strength) |
| Output Connector | 4-Pin, M12 |
| Mating Connector | M12 - F4D |
| Non-volatile Memory | TEDS 1451.4 compatible |
| Vibration Limit | 500 g peak |
| Shock Limit | 5000 g peak |
| Electromagnetic Sensitivity, Equivalent g | 100 ?g/gauss |
| Sealing | Hermetic |
| Temperature Range | -50°C to 120°C (-58°F to 248°F) ±7% |
| Warranty | One-year |
