Specifications: Fluke 832
Specifications: Fluke 832
Fluke Shaft Alignment Tablet
| General specifications |
| CPU | Processor: | Octa-Core (8): 2.2 GHz (2) and 1.8 GHz (6) |
| Memory: | 4 GB LPDDR4X SDRAM/64 GB UFS Flash |
| Display | Technology: | Corning® Gorilla® Glass |
| Resolution: | 600 nits, color WXGA 1280x800 |
| Dimensions: | 8 inch/20.3 cm |
| Power supply | Operating time: | Up to 11 Hours |
| Battery: | 6100 mAh 3.87 V rechargeable Li-Ion Polymer; (23.61 Wh) |
| Charging: | USB-C |
| Connectivity | Wifi: | IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v/w/mc/ax 2x2 MU-MIMO; Wi-Fi® certified; IPv4, IPv6 (Wi-Fi 6) |
| Bluetooth: | Bluetooth v5.1 / 2.1+EDR Class 2 (Bluetooth LE) |
| RFID: | Integrated RFID with read and write capabilities Docking connector (charge and data) USB-C side port (tablet charging and data only) |
| Environmental protection | IP 65: | Dustproof and water jets resistant |
| Relative humidity: | 5% to 95% non-condensing |
| Drop test | 1.2 m (4 ft) |
| Temperature range | Operation: | -20°C to 50°C (-4°F to 122°F) |
| Storage: | -40°C to 70°C (-40°F to 158°F) |
| Dimensions | 267 mm L x 171 mm H x 35 mm D 10 33/64" x 6 47/64" x 1 3/8" |
| Weight | 930 g/2.1 lbs |
| Camera | Rear: | Image capture: 13 MP auto-focus camera with user controllable LED flash |
| Front: | 5MP |
| CE conformity | Refer to the CE compliance certificate |
| Carrying case | Dimensions | 595 x 355 x 115 mm (23 1/2" x 14" x 4 1/2") |

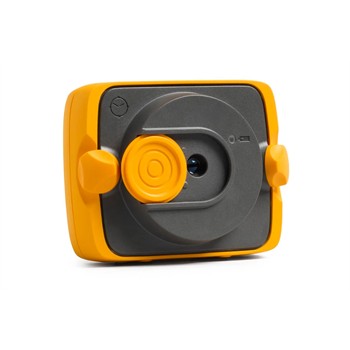

Fluke 832 Sensor
| General specifications |
| Type | 6-axis | 2 planes (4 displacement axes and 2 angles) |
| Measurement | Optical range | 14 x 14 mm (0.55 x 0.55 in.) |
| Area | Unlimited, dynamically extendible |
| Resolution | 1 ?m (0.04 mil); Angular 10 ?Rad |
| Error | < 2% |
| Transmitted rate | Approx. 20 Hz |
| Inclinometer | Resolution | 0.1° |
| Error | Roll +-1°; Pitch +- 3° |
| LED indicators | 1 LED for laser adjustment, battery and charge status; 1 LED for BT communication |
| Power supply | Battery | Lithium-Ion rechargeable battery 3.7 V, 4.7 Wh |
| Operating time | 30 hours (continuous use) |
| Charging time | 2.5 h for up to 80%; 4 h for up to 100% |
| Charging | USB-C |
| External interface | Integrated low power 2.4 GHz Radio (BT LE); USB 2.0 Full Speed |
| Radio transmission distance | Up to 50 m (160 ft) direct line of sight |
| Environmental protection | IP 65 | Dustproof and water jets resistant, shockproof |
| Relative humidity | 10% to 90% |
| Ambient light protection | Optical and active electronic digital compensation |
| Temperature range | Operation | -10°C to 50°C (14°F to 122°F) |
| Charging | 0°C to 35°C (32°F to 95°F) |
| Storage | -20°C to 50°C (-4°F to 122°F) |
| Dimensions | Approx. 104 x 72 x 54 mm (4 1/8" x 2 13/16" x 2 1/8") |
| Weight | Approx. 231 g (8.2 oz) |
| CE conformity | Refer to the CE compliance certificate |
Fluke 832 Laser
| General specifications |
| Type | Semiconductor laser diode |
| Laser | Power | < 1 mW |
| Divergence | 0.3 mrad |
| Wavelength | 630-640 nm (red, visible) |
| Separation distance | Up to 10 m |
| Adjustment | No |
| Safety class | Class 2 according to IEC 60825-1:2014 Complies with 21 CFR 1040.10 and 1040.11 except for conformance with IEC 60825-1 Ed. 3., as described in Laser Notice No. 56, dated May 8, 2019. Safety precaution: Do not look into laser beam |
| Inclinometer | Resolution | 0.1° |
| Error | Roll +-1° |
| LED indicators | 1 LED for battery and charge status |
| Power supply | Battery | Lithium-Ion rechargeable battery 3.7 V, 4.7 Wh |
| Operating time | 40 hours (continuous use) |
| Charging time | 2.5 h for up to 80%; 4 h for up to 100% |
| Charging | USB-C |
| Environmental protection | IP 65 | Dustproof and water jets resistant, shockproof |
| Relative humidity | 10% to 90% |
| Temperature range | Operation | -10°C to 50°C (14°F to 122°F) |
| Charging | 0°C to 35°C (32°F to 95°F) |
| Storage | -20°C to 50°C (-4°F to 122°F) |
| Dimensions | Approx. 101 x 75 x 37 mm (4” x 2 15/16” x 1 7/16”) |
| Weight | Approx. 190 g (6.7 oz) |
| CE conformity | Refer to the CE compliance certificate |
