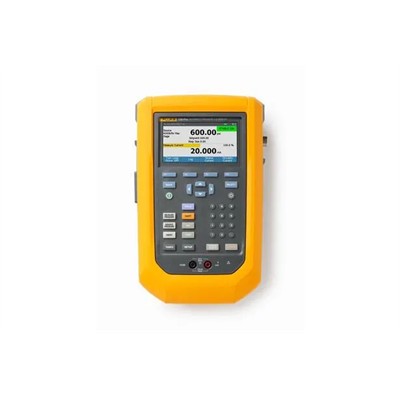

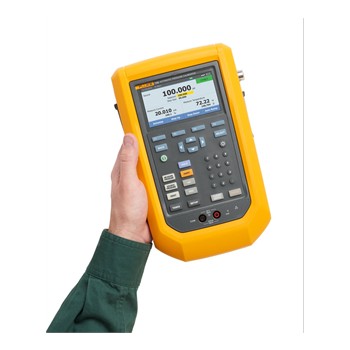

Specifications: Fluke 729 Pro Automatic Pressure Calibrator
Specifications: Fluke 729 Pro Automatic Pressure Calibrator
Key Parameters Table
| Key parameters | 729 Pro 7M | 729 Pro 4M |
| Pressure control range | -13 to 1000 psi, -90 to 7000 kPa, -0.90 to 70 bar | -13 to 600 psi, -90 to 4000 kPa, -0.90 to 40 bar |
| Pressure type | Gauge/absolute (Depends on the type of internal or external pressure module) |
| Pressure accuracy and Control stability | 0.02% of FS, 0.005% of FS |
| Replaceable pressure measurement modules | Yes, 6 modules | Yes, 4 modules |
| mA sourcing/measurement | Yes |
| Voltage measurement | Yes |
| loop power | 24 V dc |
| Pressure switch testing | Yes |
| Pressure leakage testing | Yes |
| HART Communication | Yes, basic commands supported |
| Autostep / auto ramp | Yes (with customizable speed, mode and style) |
| Battery | Rechargeable lithium battery with charge indication (charged in the instrument or separately) |
| Language | English |
| Electrical specification |
| All specifications are valid to 110% of range, except 24 mA source and simulate which are valid to 100% of range. |
| Ranges |
| mA measure, source and simulate | 0 mA to 24 mA |
| Volts dc measurement | 0 V dc to 30 V dc |
| Resolution |
| mA dc source, simulate and measure | 1 µA |
| Voltage dc measurement | 1 mV |
| Accuracy | 0.01% FS ±2 LSD all ranges (at 23 °C ±5 °C) |
| Stability | 20 ppm FS/°C (-10 °C to +18 °C and 28 °C to 50 °C) |
| mA simulation working voltage | 12 V dc to 30 V dc |
| Loop compliance voltage | 24 V dc @ 20 mA |
| Temperature measurement , 100 ? Pt(385) RTD | -50 °C to 150 °C |
| Temperature resolution | 0.01 °C |
| Temperature accuracy | ±0.1 °C ±0.25 °C combined uncertainty when using 720 RTD probe (optional accessory) |
| Drive capability (mA source) | 1200 ? (without HART resistor), 950 ? (with internal HART resistor) |
| Mechanical specification |
| Dimension (HxWxL) | 290 x 215 x 100 mm, (4.3 x 4.4 x 9.4 in) |
| Weight | 4.9 kg, (10.8 lbs) |
