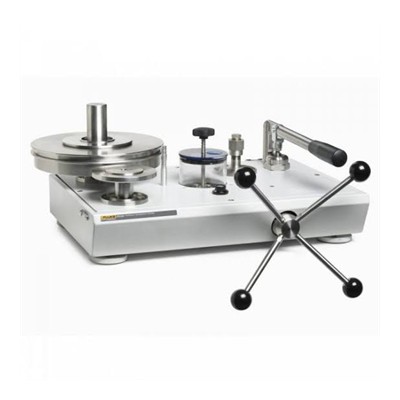

This document contains the detailed technical specifications transcribed from the Fluke Calibration P3200 Series Hydraulic Deadweight Tester datasheet.
| Parameter / Kategori | Spesifikasi Detail |
| [Pressure ranges] Oil operated | Ranges to 20,000 psi (1,400 bar) |
| [Pressure ranges] Distilled water operated | Ranges to 10,000 psi (700 bar) |
| [Pressure ranges] Accuracy | ± 0.015 % of reading (± 0.008 % optional) Note: Accuracy based on % of reading from 10 % to 100 % of the piston range when used in accordance with the corrections found on the calibration certificate. Below 10 % ± (accuracy class) x 10 % of the piston range. |
| [Materials of construction] Standard weight material | Series 3 non-magnetic austenitic stainless steel Density: 7.8 g/cm³ |
| [Materials of construction] Optional fractional weights | Solution heat treated aluminum Density: 2.7 g/cm³ |
| [Materials of construction] Piston material | Tungsten carbide with nickel binder Density: 15.0 g/cm³ |
| [Materials of construction] Cylinder material | Hardened martensitic steel Tungsten carbide (water above 500 psi, 35 bar) |
| [Materials of construction] Thermal coefficients of expansion | Oil piston/cylinder: 16.5 ppm/°C Water (above 500 psi, 35 bar): 11 ppm/°C |
| [General] Test port adaptors | M14 X 1.5, M20 X 1.5, 1/8 in, 1/4 in, 3/8 in and 1/2 in in NPT and BSP |
| [General] Weight | 16 kg (36 lb) |
| [General] Dimensions (W x D x H) | 440 mm x 300 mm x 215 mm (17.5 in x 12 in x 8.5 in) |
| [General] Mass set weight (typical) | 36 kg (80 lb) |
| [General] Reservoir volume | 150 cm³ (9.2 in³) |
| [General] Screw press displacement | 5.5 cm³ (0.34 in³) |
| [General] Pump displacement | 4.7 cm² (0.29 in³) per stroke |
| [General] O-ring seal materials | Viton® |
| [Weight increments] Minimum standard weight increments: Up to 500 psi (35 bar) | 1 psi (0.1 bar) |
| [Weight increments] Minimum standard weight increments: 500 psi to 5 000 psi (35 bar to 350 bar) | 10 psi (1 bar) |
| [Weight increments] Minimum standard weight increments: 5 000 psi to 20 000 psi (350 bar to 1 400 bar) | 20 psi (2 bar) |
| [Weight increments] Minimum standard weight increments: Model P3112 | 1 psi (0.1 bar) |
| [Weight increments] Optional fractional weights: Up to 500 psi (35 bar) | 0.1 psi (0.01 bar) |
| [Weight increments] Optional fractional weights: 500 psi to 5 000 psi (35 bar to 350 bar) | 1 psi (0.1 bar) |
| [Weight increments] Optional fractional weights: 5 000 psi to 20 000 psi (350 bar to 1400 bar) | 2 psi (0.2 bar) |
| [Operating fluids] Mineral oil | Shell spindle oil 22, our reference 55-655, viscosity 40 cs @ 20 °C (68 °F) |
| [Operating fluids] Distilled or deionized water | Distilled or deionized water |
