Fluke P5500 ADAPTERS, SEPARATORS AND DIRTMOISTURE TRAPS

Product

Category: PRESSURE

Model: Pressure Calibrator

Avaibility: AVAILABLE

Call For Price

Datasheet

pSpesifikasi Teknis: Pompa Uji Perbandingan Hidrolik

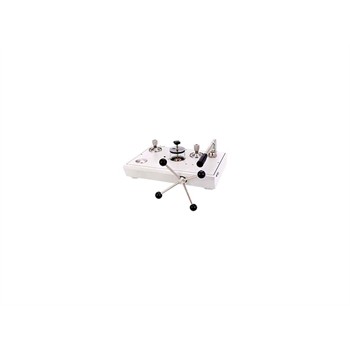

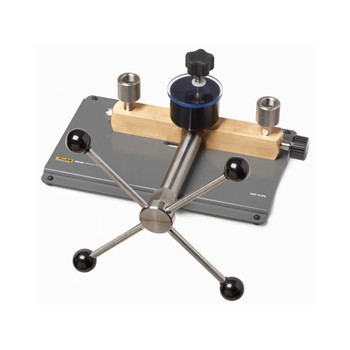

Hydraulic Comparison Test Pumps Specifications

Parameter	Model P5515	Model P5514B
Pressure range	0 psi to 20,000 psi (140 MPa)	0 psi to 10,000 psi (70 MPa)
Test port adapters	M20 X 1.5, M14 X 1.5, 1/8, 1/4, 3/8, and 1/2 NPT and BSP (plus 1 additional 1/4 NPT adapter)	1/4 NPT Female (quantity 2), 1/2 NPT Female, 1/4 BSP Female, 1/2 BSP Female
Weight	16 kg (36 lb)	5 kg (11 lb)
Dimensions (W x D x H)	440 mm x 300 mm x 215 mm (17.5 in x 12 in x 8.5 in)	279.4 mm x 279.4 mm x 254 mm (11 in x 11 in x 10 in)
Reservoir volume	150 cm3 (9.2 in3)	75 cm3 (4.6 in3)
Screw press displacement	5.5 cm3 (0.34 in3)	20 cm3 (1.2 in3)
Priming Pump displacement	4.7 cm3 (0.293 in3) per stroke	-

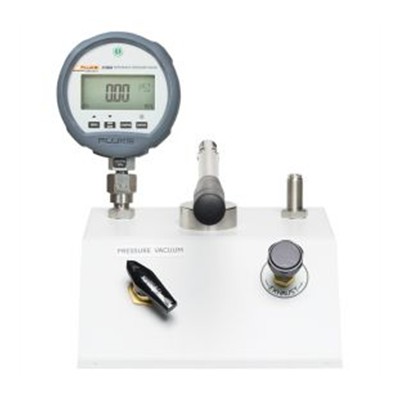

Pneumatic comparison test pumps
	Model P5510-2M	Model P5513-20M
Pressure range	0 psi to 300 psi (2 MPa)	0 psi to 3,000 psi (21 MPa)
Vacuum range	0 in to 27 in Hg (915 mbar 90% vacuum)
Test port adapters	M20 X 1.5, M14 X 1.5, 1/8, 1/4, 3/8, and 1/2 NPT and BSP (plus 1 additional 1/4 NPT adapter)	M20 X 1.5, M14 X 1.5, 1/8, 1/4, 3/8, and 1/2 NPT and BSP (plus 1 additional 1/4 NPT adapter)
Weight	3.5 kg (7.5 lb)	8 kg (17 lb)
Dimensions (W x D x H)	240 mm x 330 mm x 180 mm (9.5 in x 13 in x 7 in)	440 mm x 300 mm x 215 mm (17.5 in x 12 in x 8.5 in)
Gas supply connection		1/4 NPT female
