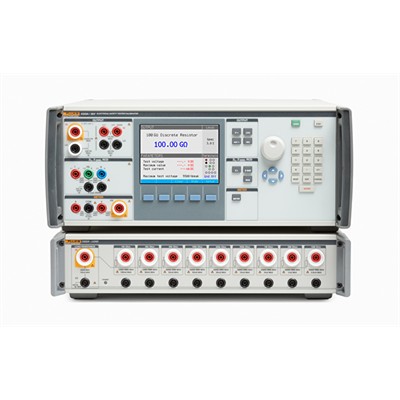

| General specifications |
| Specifications confidence level | 99 % |
| Specifications interval | 1 year |
| Power line | 115/230 V ac (50/60 Hz) ±10 % / ±5 %, with the maximum volt difference between neutral and protective earth not exceeding 15 V. Operation with power line between -10 % and -15 % has limitations in burden current for voltage output, for AC/DC Voltage Calibrator (VLC) option outputs. |
| Power consumption | 1200 VA maximum |
| Fuse protection | Mains input: 2 A, 250 V, for 230 V, time-delay (T2.0AH250 V - 5 mm x 20 mm) / 4 A, 250 V, for 115 V, time-delay (T4.0AH250 V - 5 mm x 20 mm) VLC input: 0.16 A, 250 V, time-delay (T0.162H - 5 mm x 20 mm) Meter amps (5 A) input: 20 A, 600 V, time-delay (KLK1500 V - 6.3 mm x 32 mm) Amplifier impedance input: 4 A, 500 V, time-delay (T4A500 V - 6.3 mm x 32 mm) Leakage current input: 100 mA, 250 V, fast (F100 mA250V - 5 mm x 20 mm) |
| Environment |
| Warm-up time | 30 minutes |
| Temperature performance | Operating temperature: 15 °C to 35 °C Calibration temperature (tcal): 23 °C Temperature coefficient for temperatures outside of tcal ± 5 °C is 0.1 / °C of the specifications, for temperatures between 5 °C to 40 °C. Storage temperature: -20 °C to 60 °C Storage recovery time: Typically 120 hours at operating temperature |
| Relative humidity (operating) | < 80 % to 31 °C linear decreases to < 50 %RH for > 35 °C to 40 °C |
| Relative humidity (storage) | 95 % non-condensing 0 °C to 50 °C |
| Altitude | Operating: 2000 m (6561 ft) Storage: 12 200 m (40 000 ft) |
| Dimensions and weight |
| Dimensions | 222 mm x 456 mm x 573 mm (8.7 in x 17.9 in x 22.5 in) |
| Weight | 20 kg (44.1 lb) |
| Compliance |
| Safety | Mains: IEC 61010-1: Overvoltage category II, pollution degree 2 Measurement: IEC 61010-2-030: 1000 V (not Category rated) |
• Group 1 Equipment: has intentionally generated and/or uses conductively coupled radio-frequency energy that is necessary for the internal function of the equipment itself. • Class A Equipment: is suitable for use in all establishments other than domestic and those directly connected to a low voltage power supply network that supplies buildings used for domestic purposes. There may be potential difficulties in ensuring electromagnetic compatibility in other environments due to conducted and radiated disturbances. Emissions that exceed the levels required by CISPR 11 can occur when the equipment is connected to a test object.
Class A Equipment (Industrial Broadcasting & Communication Equipment): This product meets requirements for industrial electromagnetic wave equipment and the seller or user should take notice of it. This equipment is intended for use in business environments and not to be used in homes.
47 CFR 15 subpart B. This product is considered an exempt device per Clause 15.103.
| Electrical specifications |
| Low resistance source |
| Range | 100 m? to 10 k? (±10 m? single value selection), dc and low frequency (50/60 Hz) |
| 1.0 kV High resistance source (DC only) |
| Range | 10 k? to 10 G? (±100 k? single value selection) |
| 5.0 kV High resistance source (DC only) (5322A with /5 option) |
| Range | 10 k? to 100 G? |
| Test voltage measurement |
| Range | 0 V to 5500 V |
| Ground bond resistance source |
| Resistance mesh | 1 m? to 1700 ?, dc and low frequency (50/60 Hz) |
| Line/Loop impedance source |
| Range | 25 m? to 330 ? |
| Operation in manual mode |
| Residual impedance range | 0 ? to 2 ? |
| Resolution | 1 m? |
| Operation COMP mode (active loop compensation) (5322A/VLC Option) |
| Maximum compensated impedance | 2 ? |
| Leakage current source |
| Range | 0.1 mA to 30 mA |
| Test voltage | Passive mode: 40 V ac to 260 V ac rms Differential mode: 85 V ac to 260 V ac rms Substitute mode: 10 V ac to 260 V ac rms |
| Load rating | Passive mode: < 30 W (wiring + 2 ?A) Differential mode: < 30 W (wiring + 2 ?A) Substitute mode: < 10 W (wiring + 2 ?A) Test uncertainty can be influenced by power line voltage instability. Residual mode: < 20 W (wiring + 2 ?A) Active mode (5322A/VLC only): < 20 W (wiring + 1 ?A) |
| Human body simulation for residual leakage currents only | Resistance range: 0.1 ? to 10 000 ? Resolution: 1 ? |
| Trip current range | 0.5 X I and 1 X I Mode: 3 mA to 30 mA in 1 mA steps 1.4 X I and 5 X I Mode: 3 mA to 30 mA in 1 mA steps 0.5 X I Mode: 10 mA to 1000 mA in 5 mA steps |
| Trip current measurement resolution | 1 ?A below 30 mA 10 ?A in range from 30 mA to 350 mA 100 ?A in range from 350 mA to 1 A |
| Trip current accuracy | ± 1% of nominal current (I) setting |
| Trip time range | 10 to 6000 ms |
| Trip time uncertainty | ± (0.01% setting + 0.25 ms) |
| Touch Voltage range | Touch voltage range: 50 V Touch voltage setting: in discrete points depending on setup trip current value Touch series resistance: 0.03 ?, 0.05 ?, 0.1 ?, 0.2 ?, 0.3 ?, 0.4 ?, 0.5 ?, 1.1 ?, 2.7 ?, 9 ?, 18 ?, 45 ?, 90 ?, 175 ?, 370 ?, 940 ?, 1780 ? Limit voltage range: 260 V Limit voltage uncertainty: ± (1 % reading + 2 V) User selectable nominal line voltage: 100 V/110 V/115 V/120 V/127 V/220 V/230 V/240 V ac rms Post-trip delayed power restart: mainly used for simulator |
| Trip current range | 0.5 X I to 5 X I Mode: 5 mA to 240 mA in 1 mA steps |
| Trip current measurement resolution | 1 ?A |
| Trip current measurement uncertainty | Trip current: ± 1 % of nominal current (I) setting |
| Trip time range | 10 to 6000 ms |
| Trip time uncertainty | ± (0.01% setting + 0.25 ms) |
| Line voltage | Power-restoration delay: 2.5 s |
| Range | 0.01 V to 600 V ac or dc (0 - Peak) |
| Internal ranges | AC mode: 0.1 V to 600 V DC mode: 0.1 V to 600 V |
| Maximum electrical voltage | Hi Terminal to COM Terminal: 1000 V rms V Terminal to COM Terminal: 1100 V rms COM Terminal to Protective Earth: 2000 V pk |
| AC/DC voltage range | V (1100 V) input: 0 V dc to ±1100 V dc, 10 mV to 1100 V ac rms mV (600 mV) input: 0 mV dc to ±600 mV dc, 1 mV to 600 mV ac rms |
| AC/DC current | Range: 0 A to 20 A continuous, 20 A to 30 A for up to 5 minutes ac rms or dc |
| Range | 0 VA to 33 kVA ac |
| Type | Apparent, active, reactiv |
| Phase indication | Phase angle (?), Power Factor (PF) |
| Phase uncertainty (60 Hz) | ± 0.1° |
| Range | 0 to 33 kW dc |
| Frequency range | 20 Hz to 2.1 kHz |
| Number of harmonics | 24 |
| Voltage range | 100 V dc to 5000 V dc |
| Ripple coefficient range | 10 % |
| Class I Voltage range | 3000 V ac rms |
| Uncertainty | ± (1 % of reading + 4 V) |
| Class II Voltage range | 6000 V ac rms |
| Uncertainty | ± (1 % of reading + 6 V) |
| Range | 0 mA ac rms to 300 mA ac rms dc |
| Resolution | 2.4 mA max |
