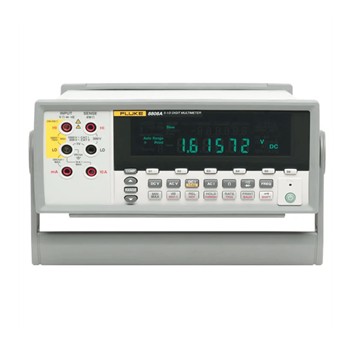

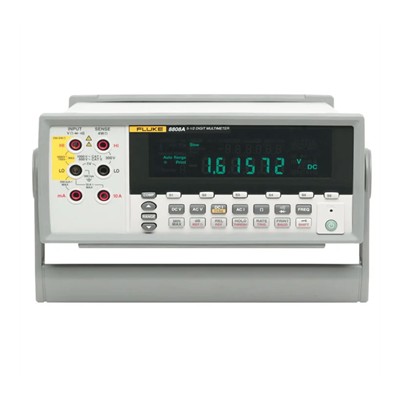

Fluke 8808A DIGITAL MULTIMETER 5.5 DIGIT

Product

Category: ELECTRICAL

Model: Electrical Calibrator

Avaibility: AVAILABLE

Call For Price

Datasheet

Summary Specifications: Fluke 8808A

Parameter / Kategori	Spesifikasi (Fluke 8808A)
Display	VFD multi segment display
Resolution	5.5 digits
Measurement function	Accuracy, ± (% of reading + % of range)
V dc ranges	200 mV to 1000 V
Maximum resolution	1 uV
Accuracy	0.015 + 0.003
V ac
Ranges	200 mV to 750 V
Maximum resolution	1 uV
Accuracy	0.2 + 0.05
Frequency	20 Hz to 100 KHz
Resistance
2x4 wire	Yes
Ranges	200 ? to 100 M?
Maximum resolution	1 m?
Accuracy	0.02 + 0.003
A dc
Ranges	200 uA to 10 A
Maximum resolution	1 nA
Accuracy	0.02 + 0.006
A ac
Ranges	20 mA to 10 A
Maximum resolution	100 uA
Accuracy	0.3 + 0.06
Frequency	20 Hz to 2 kHz
Freq/period
Ranges	20 Hz to 1 MHz (freq only)
Max. Resolution	0.1 mHz
Accuracy	0.01 %
Continuity/Diode Test	Yes
Capacitance
Ranges	—
Maximum resolution	—
Accuracy	—
Temperature
Type	—
Range	—
Maximum resolution	—
Accuracy	—
Math functions
Types	—
dB/dBm	Yes
Advanced functions
Statistics/histogram	No
Trendplot	No
Limit Test	Yes
Input output
USB memory	—
Real time clock	No
Interfaces	RS-232, USB with optional adapter
Programming Languages/modes	Simplified ASCII, Fluke 45
General
Weight	2.1 kg (4.6 lb)
Size (HxWxD)	88 mm x 217 mm x 297 mm
Safety	Designed to comply with EN 61010-1:2001, ANSI/ISA 61010-1 (S82.02.01):2004, UL 61010-1:2004, CAN/CSA C22.2 No. 61010.1:2004
Warranty	One year
