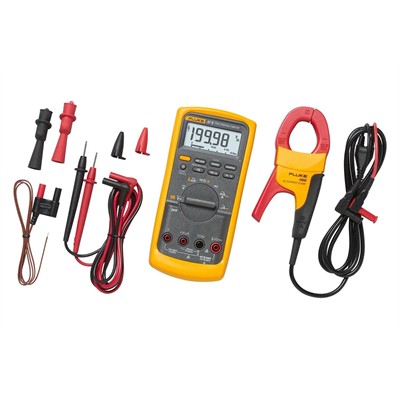

Specifications: Fluke 87V Industrial Multimeter
Specifications: Fluke 87V Industrial Multimeter
| Specifications |
| Voltage DC | Maximum voltage | 1000 V |
| Accuracy | ±(0.05% + 1) |
| Maximum resolution | 10 µV |
| Voltage AC | Maximum voltage | 1000 V |
| Accuracy | ±(0.7% + 2) True RMS |
| AC bandwidth | 20 kHz with low pass filter; 3 dB @ 1 kHz |
| Maximum resolution | 0.1 mV |
| Current DC | Maximum amps | 10 A (20 A for 30 seconds maximum) |
| Amps accuracy | ±(0.2% + 2) |
| Maximum resolution | 0.01 µA |
| Current AC | Maximum amps | 10 A (20 A for 30 seconds maximum) |
| Amps accuracy | ±(1.0% + 2) True RMS |
| Maximum resolution | 0.1 µA |
| Resistance | Maximum resistance | 50 M? |
| Accuracy | ±(0.2% + 1) |
| Maximum resolution | 0.1 ? |
| Capacitance | Maximum capacitance | 9,999 µF |
| accuracy | ±(1% + 2) |
| Maximum resolution | 0.01 nF |
| Frequency | Maximum frequency | 200 kHz |
| Accuracy | ±(0.005% + 1) |
| Maximum resolution | 0.01 Hz |
| Duty cycle | Maximum duty cycle | 99.9% |
| Accuracy | ±(0.2% per kHz + 0.1%) |
| Maximum resolution | 0.1% |
| Temperature measurement | -200.0 °C to 1090 °C -328.0 °F to 1994.0 °F excluding probe |
| 80 BK temperature probe | -40.0 °C to 260 °C -40.0 °F to 500 °F, 2.2 °C or 2% whichever is greater |
| Conductance | Maximum conductance | 60.00 nS |
| Accuracy | ±(1.0% + 10) |
| Maximum resolution | 0.01 nS |
| Diode | Range | 3 V |
| Resolution | 1 mV |
| Accuracy | ±(2% + 1) |
| Duty cycle range | Accuracy | Within ±(0.2% per kHz + 0.1%) |
| Environmental Specifications |
| Operating temperature | –20 °C to + 55 °C |
| Storage temperature | –40 °C to + 60 °C |
| Humidity (without condensation) | 0% – 90% (0 °C – 35 °C) 0% – 70% (35 °C – 55 °C) |
| Operating Altitude | 2000 m |
| Safety Specifications |
| Overvoltage category | EN 61010–1 to 1000 V CAT III, 600V CAT IV |
| Agency approvals | CE, CSA, RCM |
| Mechanical and General Specifications |
| Size | 201 x 98 x 52 mm (with holster) |
| Weight | 355 g 624 g – with holster |
| Display | Digital | 6000 counts updates 4/sec. 19,999 counts in high–resolution mode |
| Analog | 32 segments, updates 40/sec |
| Frequency | 19,999 counts, updates 3/sec at > 10 Hz |
| Warranty | Lifetime |
| Battery Life | Alkaline | ~400 hours typical, without backlight |
| Shock | 1 Meter drop per IEC 61010–1:2001 |
| Vibration | Per MIL–PRF–28800 for a Class 2 instrument |
