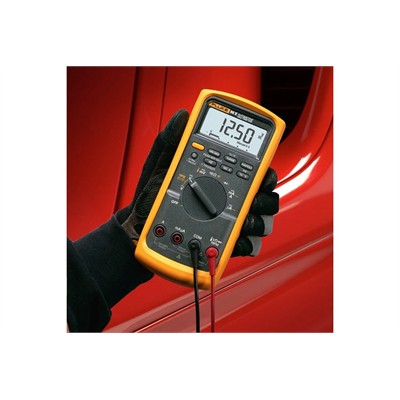

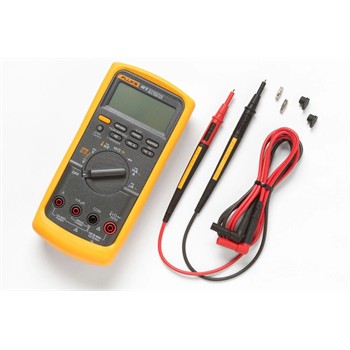

Fluke 88V Deluxe Automotive Multimeter

Product

Category: ELECTRICAL

Model: Digital Multimeter

Avaibility: AVAILABLE

Call For Price

Datasheet

Specifications: Fluke 88V Deluxe Automotive Multimeter

Technical Specifications
DCV	Maximum voltage	1000 V
	Accuracy	±(0.1% + 1)
	Best resolution	0.01 mV
ACV	Maximum voltage	1000 V
	Accuracy	±(0.5% + 2)
	AC bandwidth	5 kHz
	Best resolution	0.01 mV
DC current	Maximum amps	10 A
	Amps accuracy	±(0.4 % + 2)
	Best resolution	0.001 mA
AC current	Maximum amps	10 A
	Amps accuracy	±(1.2% + 2)
	Best resolution	0.001 mA
Resistance	Maximum resistance	50 M?
	Accuracy	±(0.4% + 1)
	Best resolution	0.1 ?
Capacitance	Maximum capacitance	9,999 µF
	Accuracy	±(1% + 2)
	Best resolution	0.01 nF
Frequency	Maximum frequency	200 KHz
	Accuracy	±(0.005% + 1)
	Best resolution	0.01 Hz
Duty cycle	Maximum duty cycle	99.9%
	Accuracy	within 2% per KHz + 0.1%
	Best resolution	0.1%
Temperature measurement	-200.0°C – 1090°C -328.0°F – 1994.0°F, 1.0% excluding probe
80 BK temperature probe	-40 °C – 260°C -40 °F – 500°F, 2.2°C or 2% whichever is greater
Conductance	Maximum conductance	60.00 nS
	Accuracy	±(1.0% + 10)
	Maximum resolution	0.01 nS
Operating range	Operating temperature	-20°C – 55°C
	Storage temperature	-40°C – 60°C
Physical	5.2 x 9.8x 20.1 cm (2.06 x 3.86 x 7.93 in) 624 g (22 oz.)
