FLUKE

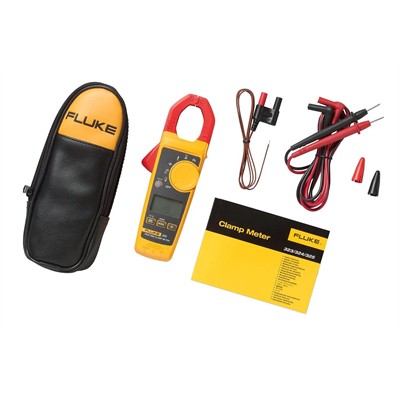

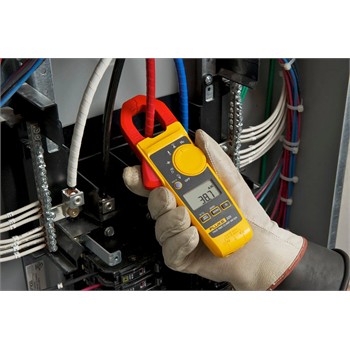

Fluke 325 True RMS Clamp Meter

Category: ELECTRICAL

Model: Clamp Meter

Avaibility: AVAILABLE

Call For Price

icon-pdf

Datasheet

Specifications: Fluke 325 True RMS Clamp Meter

Specifications: Fluke 325 True RMS Clamp Meter

Specifications
AC currentRange40.00 A / 400.0 A
Accuracy2% ± 5 digits (45 Hz to 65 Hz) 2.5% ± 5 digits (65 Hz to 400 Hz)
DC currentRange40.00 A / 400.0 A
Accuracy2% ± 5 digits
AC voltageRange600.0 V
Accuracy1.5% ± 5 digits
DC voltageRange600.0 V
Accuracy1.0% ± 5 digits
ResistanceRange400.0 ? / 4000 ? / 40.00 k?
Accuracy1.0% ± 5 digits
Continuity? 30 ?
Capacitance0 to 100.0 ?F / 100?F to 1000 ?F
Frequency5.0 Hz to 500.0 Hz
AC responseTrue-RMS
BacklightYes
Data holdYes
Contact temperature-10.0°C to 400.0°C (14.0°F to 752.0°F)
Min/MaxYes
SizeH x W x D (mm)207 x 75 x 34
Max wire diameter30 mm (600 MCM)
Weight283 g
Category ratingCAT III 600 V CAT IV 300 V
WarrantyTwo-year
