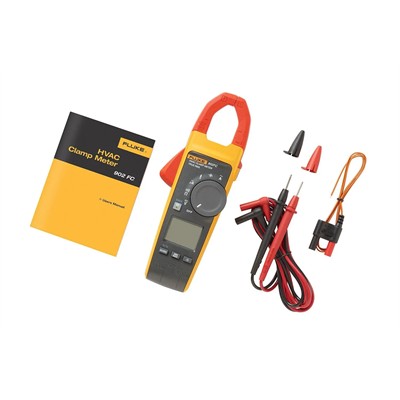

Specifications: Fluke 902 FC True-RMS HVAC Clamp Meter
Specifications: Fluke 902 FC True-RMS HVAC Clamp Meter
| Function |
| A ac (via Jaw) | |
| Resolution | 0.1 A |
| Accuracy | 2.0% ±5 digit (45-65 Hz) |
| | 2.5% ±5 digit (65-400 Hz) |
| Range | 600.0 A |
| Crest Factor (50Hz or 60Hz) | 2.5 MIN@220 A > 1.4 MIN@600 A Add 2% for CF>400 A |
| V ac | | |
| Resolution | 0.1 V |
| Accuracy | 1.5% ±5 digits |
| Range | 600.0 V |
| V dc | |
| Resolution | 0.1 V |
| Accuracy | 1.5% ±5 digits |
| Range | 600.0 V |
| Ohms | |
| Resolution | 0.1/1/10 |
| Accuracy | 1% ±5 digits |
| Range | 600/6000/60.00 k? |
| Capacitance | |
| Resolution | 0.1/1 µF |
| Accuracy | 1% ±4 digits |
| Range | 100.0/1000 µF |
| µA | |
| Resolution | 0.1 µA |
| Accuracy | 1% ±5 digits |
| Range | 200 µA |
| Contact temperature | |
| Resolution | 0.1 C/F |
| Accuracy | 1% ±8 digits |
| Range | -40 to 400 °C (-40 °F to 752 °F) |
| Continuity beeper | |
| Beeper volume | 75 dBA nom. 15 cm. from case front |
| On threshold | <=30 ? |
| Mechanical and General Specifications |
| Maximum voltage between any terminal and earth ground | 600 V |
| Battery type | 2 AA alkaline batteries, NEDA 15A, IEC LR6 |
| Temperature | Operating: -10 °C to +50 °C (14 °F to +122 °F) Storage: -40 °C to +60 °C (-40 °F to +140 °F) |
| Operating humidity | Non condensing (< 10 °C [50 °F]), ?90 % RH (at 10 °C to 30 °C [50 °F to 86 °F]), ?75 % RH (at 30 °C to 40 °C (86 °F to 104 °F)), ?45 % RH (at 40 °C to 50 °C (104 °F to 122 °F)) |
| Altitude | Operating: 3,000 m (9,842 ft) Storage: 12,000 m (39,370 ft) |
| Dimensions | 230 x 83.7 x 45.4mm (9.06 x 3.30 x 1.39 in) |
| Weight (meter only) | 419 g (15 oz) |
| Safety | IEC 61010-1, Pollution Degree 2 IEC 61010-2-032: CAT III 600 V / CAT IV 300 V IEC 61010-2-033: CAT III 600 V / CAT IV 300 V |
| IP Rating | IEC 60529: IP30, non-operating |
| Radio Frequency Certification | FCC ID:T68-FBLE IC:6627A-FBLE |
| Electromagnetic Compatibility (EMC) | International: IEC 61326-1: Portable, Electromagnetic Environment, IEC 61326-2-2 CISPR 11: Group 1, Class A Korea (KCC): Class A Equipment (Industrial Broadcasting & Communication Equipment) USA (FCC): 47 CFR 15 subpart B. This product is considered an exempt device per clause 15.103. |
| Temperature coefficients | Add 0.1 × specified accuracy for each degree C above 28 °C or below 18 °C |
