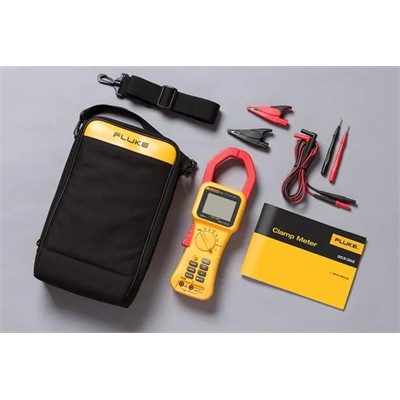

| Electrical Specifications |
| Current measurement AC 10 Hz to 100 Hz | Range | 40 A / 400 A / 1400 AC rms |
| Resolution | 10 mA / 100 mA / 1 A |
| Accuracy | 40 A: 1.5% rdg + 15 digits 400 A: 1.5% rdg + 5 digits 1400 A: 1.5% rdg + 5 digits |
| Trigger level for Inrush | 0.50 A / 5.0 A / 5 A |
| Trigger level for Hz filter OFF | 2.50 A / 2.5 A / 8 A |
| Trigger level for Hz filter ON | 0.50 A / 2.5 A / 8 A |
| Crest Factor (50/60 Hz) | Range | 40 A / 400 A / 1400 AC |
| Crest Factor1 | 2 @ 33 A, 2.4 @ 27 A 2 @ 330 A, 2.4 @ 270 A 2 @ 1000 A, 2.4 @ 833 A |
| Current measurement AC 100.1 Hz to 1 kHz | Range | 40 A / 400 A / 1400 AC rms |
| Resolution | 10 mA / 100 mA / 1 A |
| Accuracy | 40 A: 3.5% rdg + 15 digits 400 A: 3.5% rdg + 5 digits 1400 A: 3.5% rdg + 5 digits |
| Trigger level for Inrush | 0.50 A / 5.0 A / 5 A |
| Trigger level for Hz filter OFF | 2.50 A / 2.5 A / 8 A |
| Trigger level for Hz filter ON | 0.50 A / 2.5 A / 8 A |
| Current measurement DC | Range | 40 A / 400 A / 2000 A |
| Resolution | 0.01 A / 0.1 A / 1 A |
| Accuracy | 40 A: 1.5% rdg + 15 digits 400 A: 1.5% rdg + 5 digits 2000 A: 1.5% rdg + 5 digits |
| Voltage measurement AC 10 Hz to 100 Hz (600 V range has 10% over range to 660 V) | Range | 4 V / 40 V / 400 V / 600 V AC rms |
| Resolution | 1 mV / 10 mV / 100 mV / 1 V |
| Accuracy | 4 V: 1% rdg + 10 digits 40 V: 1% rdg + 5 digits 400 V: 1% rdg + 5 digits 600 V: 1% rdg + 5 digits |
| Trigger level for Hz filter OFF | 0.25 V / 6 V |
| Trigger level for Hz filter ON | 0.25 V / 6 V |
| Voltage measurement AC 100.1 Hz to 1 kHz (600 V range has 10% over range to 660 V) | Range | 4 V / 40 V / 400 V / 600 V ac rms |
| Resolution | 1 mV / 10 mV / 100 mV / 1 V |
| Accuracy | 4 V: 3% rdg + 10 digits 40 V: 3% rdg + 5 digits 400 V: 3% rdg + 5 digits 600 V: 3% rdg + 5 digits |
| Trigger level for Hz filter OFF | 0.050 V / 0.25 V / 6 V / 6 V |
| Trigger level for Hz filter ON | 0.050 V / 0.25 V / 6 V / 6 V |
| Voltage measurement DC | Range | 4 V / 40 V / 400 V / 1000 V |
| Resolution | 0.001 V / 0.01 V / 0.1 V / 1 V |
| Accuracy | 4 V: 1% rdg + 10 digits 40 V: 1% rdg + 5 digits 400 V: 1% rdg + 5 digits 1000 V: 1% rdg + 5 digits |
| Resistance measurement | Range | 400 ? / 4 k? / 40 k? / 400 k? |
| Resolution | 0.1 ? / 1 ? / 10 ? / 100 ? |
| Accuracy | 1.5% + 5 digits |
| Continuity beeper | On at ? 30 ? Off at ? 100 ? |
| Frequency measurement | Measurement range | 5.0 Hz to 1 kHz |
| Resolution | 0.1 Hz (15 Hz to 399.9 Hz); 1 Hz (400 Hz to 1 kHz) |
| Accuracy – 5.0 Hz to 100 Hz | 0.2% + 2 counts |
| Accuracy – 100.1 Hz to 1 kHz | 0.5% + 5 counts |
| Trigger level | Refer to current and voltage tables |
| 1. Add 2% to error spec for CF > 2 |
| General Specifications |
| Batteries | Six 1.5 V AA NEDA 15 A or IEC LR6 |
| Battery life (with typical usage, backlight off) | 100 hours |
| Test leads | Rated to 1000 V |
| Weight | .814 kg (1.8 lb) |
| Jaw size | 58 mm (2.28 in) |
| Dimensions (L x W x D) | 300 x 98 x 52 mm (12 x 3.75 x 2 in) |
| Safety rating | IEC 61010-2-032, 600 V CAT IV, 1000 V CAT III |
| Environmental Specifications |
| Operating temperature | 32°F to +122°F (0°C to +50°C) |
| Storage temperature | -4°F to 140°F (-20°C to +60°C) |
| Operating humidity | 0 to 95% (non-condensing) |
| Operating altitude | 2000 m |
| Storage altitude | 10,000 m |
| IP rating | 42 (indoor use only) |
| Drop test requirements | 1 m |
| EMI, RFI, EMC | FCC part 15, IEC/EN 61326-1:1997 class B IEC/EN 61326:1997 3 V/m, performance criteria B, EN61325 |
| Temperature coefficients | Current | 0.1% of reading per °C outside 22°C to 24°C |
| Voltage | 0.1% of reading per °C outside 22°C to 24°C |
