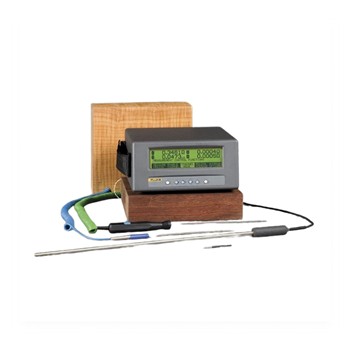

Fluke 1529 CHUB- E4 STANDARDS THERMOMETER

Category: TEMPERATURE

Model: Handheld Temperature Calibrator and Indicator

Avaibility: AVAILABLE

Call For Price

icon-pdf

Datasheet

Specifications: 1529 Chub-E4 Standards Thermometer

Specifications: 1529 Chub-E4 Standards Thermometer

PRT / RTDThermistorThermocouple
Inputs2 channels PRT/thermistor and 2 channels TC, or 4 channels PRT/thermistor, or 4 channels TC, specify when ordering; PRT/thermistor channels accept 2, 3, or 4 wires; TC inputs accept B, E, J, K, N, R, S, T, and Au-Pt TC types. (Support for C and U type thermocouples is available. Download the application note Using Fluke Calibration Readouts with Tungsten-Rhenium and other Thermocouples)2 channels PRT/thermistor and 2 channels TC, or 4 channels PRT/thermistor, or 4 channels TC, specify when ordering; PRT/thermistor channels accept 2, 3, or 4 wires; TC inputs accept B, E, J, K, N, R, S, T, and Au-Pt TC types. (Support for C and U type thermocouples is available. Download the application note Using Fluke Calibration Readouts with Tungsten-Rhenium and other Thermocouples)2 channels PRT/thermistor and 2 channels TC, or 4 channels PRT/thermistor, or 4 channels TC, specify when ordering; PRT/thermistor channels accept 2, 3, or 4 wires; TC inputs accept B, E, J, K, N, R, S, T, and Au-Pt TC types. (Support for C and U type thermocouples is available. Download the application note Using Fluke Calibration Readouts with Tungsten-Rhenium and other Thermocouples)
Temperature Range-189 °C to 960 °C-50 °C to 150 °C-270 °C to 1800 °C
Measurement Range0 ? to 400 ?0 ? to 500 k?-10 to 100 mV
CharacterizationsITS-90, IEC-751 (DIN "385"), Calendar-Van DusenSteinhart-Hart, YSI-400NIST Monograph 175, 3-point deviation function applied to NIST 175, 6th-order polynomial
Temperature Accuracy (meter only)± 0.004 °C at –100 °C ± 0.006 °C at 0 °C ± 0.009 °C at 100 °C ± 0.012 °C at 200 °C ± 0.018 °C at 400 °C ± 0.024 °C at 600 °C± 0.0025 °C at 0 °C ± 0.0025 °C at 25 °C ± 0.004 °C at 50 °C ± 0.010 °C at 75 °C ± 0.025 °C at 100 °CExt. RJC/Int. RJC B at 1000 °C: ± 0.6 °C/± 0.6 °C E at 600 °C: ± 0.07 °C/± 0.25 °C J at 600 °C: ± 0.1 °C/± 0.35 °C K at 600 °C: ± 0.15 °C/± 0.4 °C N at 600 °C: ± 0.15 °C/± 0.3 °C R at 1000 °C: ± 0.4 °C/± 0.5 °C S at 1000 °C: ± 0.5 °C/± 0.6 °C T at 200 °C: ± 0.1 °C/± 0.3 °C
Temperature Resolution0.001 °0.0001 °0.01 to 0.001 °
Resistance/Voltage Accuracy0 ? to 20 ?: ± 0.0005? 20 ? to 400 ?: ± 25 ppm of rdg.0 ? to 5 k?: ± 0.5 ? 5 k? to 200 k?: ± 100 ppm of rdg. 200 k? to 500 k?: ± 300 ppm of rdg.–10 to 50 bmV: ± 0.005 mV 50 to 100 mV: ± 100 ppm of rdg. Internal RJC: ± 0.25 °C
Operating Range16 °C to 30 °C
Measurement Interval0.1 second to 1 hour; inputs may be read sequentially or simultaneously at 1 second or greater interval
Excitation Current1 mA, reversing2 and 10 µA, automatically selectedn/a
Display33 x 127 mm (1.3 x 5 in) backlit LCD graphical display
Display Units°C, °F, K, ?, k?, mV
Data LoggingUp to 8,000 time- and date-stamped measurements can be logged
Logging Intervals0.1, 0.2, 0.5, 1, 2, 5, 10, 30, or 60 seconds; 2, 5, 10, 30, or 60 minutes
AveragingMoving average of most recent 2 to 10 readings, user selectable

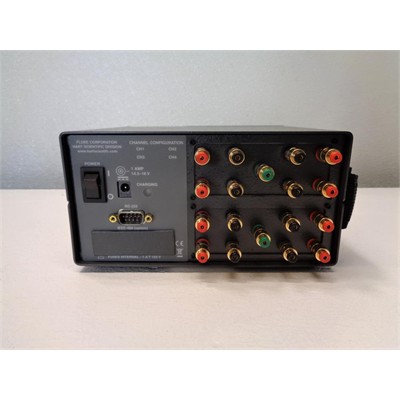

Probe ConnectionPatented DWF Connectors accept mini spade lug, bare-wire, or mini banana plug terminationsUniversal receptacle accepts miniature and standard TC connectors
CommunicationsRS-232 included, IEEE-488 (GPIB) optional
AC Power100–240 V ac, 50-60 Hz, 0.4 A
DC Power12–16 VDC, 0.5 A (battery charges during operation from 14.5 to 16V DC, 1.0A)
BatteryNiMH, 8 hours of operation typical without backlight, 3 hours to charge, 500 cycles
Size (HxWxD)102 x 191 x 208 mm (4.0 x 7.5 x 8.2 in)
Weight2 kg (4.5 lb)
CalibrationAccredited resistance and voltage calibrations
