FLUKE

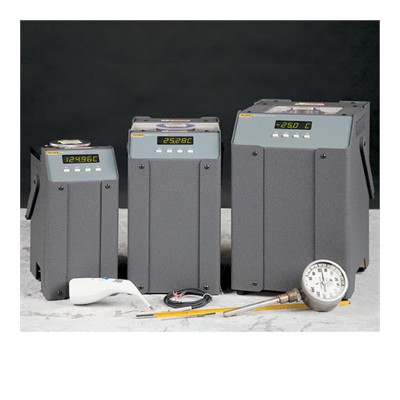

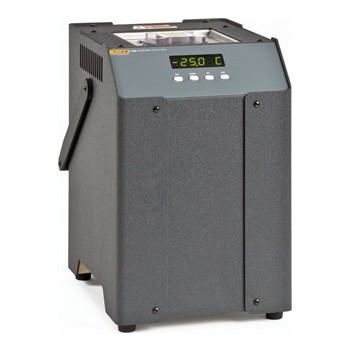

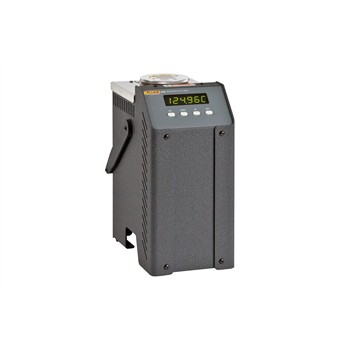

Fluke 6102 - 7103 MICRO-BATH

Category: TEMPERATURE

Model: Handheld Temperature Calibrator and Indicator

Avaibility: AVAILABLE

Call For Price

icon-pdf

Datasheet

Specifications: Fluke Calibration 6102/7102/7103 Micro-Bath

Specifications: Fluke Calibration 6102/7102/7103 Micro-Bath

General Specifications
Specifications610271027103
Range35°C to 200°C (95°F to 392°F)-5°C to 125°C (23°F to 257°F)-30°C to 125°C (-22°F to 257°F)
Accuracy±0.25°C±0.25°C±0.25°C
Stability±0.02°C at 100°C (oil 5013) ±0.03°C at 200°C (oil 5013)±0.015°C at -5°C (oil 5010) ±0.03°C at 121°C (oil 5010)±0.03°C at -25°C (oil 5010) ±0.05°C at 125°C (oil 5010)
Uniformity±0.02°C±0.02°C±0.02°C
Resolution0.01°C/°F0.01°C/°F0.01°C/°F
Operating temperature5°C to 45°C5°C to 45°C5°C to 45°C
Heating time25°C to 200°C: 40 minutes25°C to 100°C: 30 minutes25°C to 100°C: 35 minutes
Cooling time200°C to 100°C: 35 minutes25°C to 0°C: 30 minutes25°C to -25°C: 45 minutes
Well size64 mm dia. x 140 mm deep64 mm dia. x 140 mm deep (working area is 48 mm [1.9 in] in diameter)64 mm dia. x 140 mm deep (working area is 48 mm [1.9 in] in diameter)
Size (W x H x D)14 x 26 x 20 cm (5.5 x 10.38 x 8 in)18 x 31 x 24 cm (7.2 x 12 x 9.5 in)23 x 34 x 26 cm (9 x 13.2 x 10.5 in)
Weight4.5 kg (10 lb) with fluid6.8 kg (15 lb) with fluid9.8 kg (22 lb) with fluid
Volume0.75 L (1.6 pints)0.75 L (1.6 pints)1.0 L (2.11 pints)
Power115 V AC (±10%), 2.3 A or 230 V AC (±10%), 1.1 A, switchable, 50/60 Hz, 270 W115 V AC (±10%), 1.8 A or 230 V AC (±10%), 0.9 A, switchable, 50/60 Hz, 200 W94-244 V AC (±10%), 50/60 Hz, 400 W
Computer interfaceRS-232 included
NIST-traceable calibrationData at 50°C, 100°C, 150°C, and 200°CData at -5°C, 25°C, 55°C, 90°C, and 121°CData at -25°C, 0°C, 25°C, 50°C, 75°C, 100°C, and 125°C
