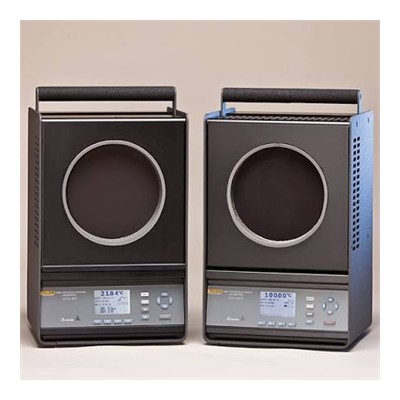

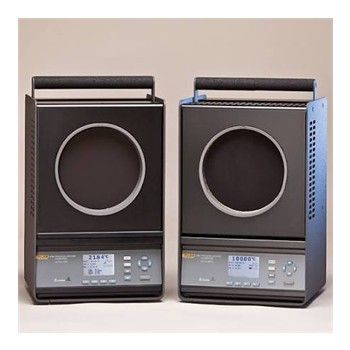

Fluke 4180 - 4181 PRECISION IR Calibrator

Product

Home / Product

Category: TEMPERATURE

Model: Handheld Temperature Calibrator and Indicator

Avaibility: AVAILABLE

Call For Price

Datasheet

Description
Specification

Comparing the 4180 and the 4181

Specifications181

Comparing the 4180 and the 4181

Function	4180	4181
Temperature range (@ 23 °C ambient and 0.95 emissivity)	-15 °C to 120 °C	35 °C to 500 °C
Display Accuracy(1)	± 0.40 °C at -15 °C ± 0.40 °C at 0 °C ± 0.50 °C at 50 °C ± 0.50 °C at 100 °C ± 0.55 °C at 120 °C	± 0.35 °C at 35 °C ± 0.50 °C at 100 °C ± 0.70 °C at 200 °C ± 1.20 °C at 350 °C ± 1.60 °C at 500 °C
Stability	± 0.10 °C at -15 °C ± 0.05 °C at 0 °C ± 0.10 °C at 120 °C	± 0.05 °C at 35 °C ± 0.20 °C at 200 °C ± 0.40 °C at 500 °C
Uniformity (5.0 in dia of center of target)(2)	± 0.15 °C at -15 °C ± 0.10 °C at 0 °C ± 0.25 °C at 120 °C	± 0.10 °C at 35 °C ± 0.50 °C at 200 °C ± 1.00 °C at 500 °C
Uniformity (2.0 in dia of center of target)(2)	± 0.10 °C at -15 °C ± 0.10 °C at 0 °C ± 0.20 °C at 120 °C	± 0.10 °C at 35 °C ± 0.25 °C at 250 °C ± 0.50 °C at 500 °C
Heating time	15 min: -15 °C to 120 °C 14 min: 23 °C to 120 °C	45 min: 35 °C to 500 °C
Cooling time	15 min: 120 °C to 23 °C 20 min: 23 °C to -15 °C	100 min: 500 °C to 35 °C 40 min: 500 °C to 100 °C
Thermometer emissivity compensation	10 minutes	10 minutes
Nominal target emissivity(3)	0.95	0.95
Capacitance	0.9 to 1.0	0.9 to 1.0
Target Diameter	152.4 mm (6 inches)	152.4 mm (6 inches)
Computer interface	RS-232	RS-232
Power	115 V ac (±10 %), 6.3 A, 50/60 Hz, 630 W 230 V ac (±10 %), 3.15 A, 50/60 Hz, 630 W	115 V ac (±10 %), 10 A, 50/60 Hz, 1000 W 230 V ac (±10 %), 5 A, 50/60 Hz, 1000 W
Fuse(s)	115 V ac 6.3 A, 250 V, slow blow 230 V ac 3.15 A, 250 V, T	115 V ac 10 A, 250 V, fast blow 230 V ac 5 A, 250 V, F
Size (HxWxD)	356 mm x 241 mm x 216 mm (14 in x 9.5 in x 8.5 in)	356 mm x 241 mm x 216 mm (14 in x 9.5 in x 8.5 in)
Weight	9.1 kg (20 lb)	9.5 kg (21 lb)
Safety	EN 61010-1:2001, CAN/CSA C22.2 No. 61010.1-04	EN 61010-1:2001, CAN/CSA C22.2 No. 61010.1-04
