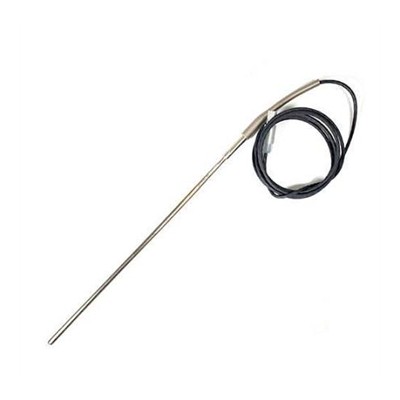

Fluke 5627A PRECISION THERMOMETER, RTD TEMPERATURE PROBE

Product

Category: TEMPERATURE

Model: Handheld Temperature Calibrator and Indicator

Avaibility: AVAILABLE

Call For Price

Datasheet

Specifications: 5627A | Precision Thermometer, RTD Temperature Probe

Specifications
Resistance	Nominal 100 ?
Temperature Coefficient	0.00385 ?/?/°C nominal
Temperature Range	-200 °C to 420 °C (5627A-6 and 5627A-9 to 300 °C; transition and cable temperature: 0 °C to 150 °C)
Drift Rate (k=2)	± 0.04 °C at 0 °C after 100 hours at 420 °C
Sheath Material	316 Stainless Steel
Leads	PTFE-insulated, nickel-plated stranded copper, 22 AWG
Termination	Specify. See Ordering Information.
Time Constant	Four seconds maximum for 63.2 % response to step change in water moving at 3 fps.
Bending Radius	Sheath may be ordered with a bend on a minimum radius of 19 mm (3/4 in) except for 50 mm (2 in) area of sheath near tip. (Fluke lab requires 20 cm [8 in] of unbent sheath to re-calibrate.)
Calibration	Includes manufacturer's accredited calibration and table with R vs. T values in 1 °C increments from -196 °C to 500 °C (to 300 °C for 5627A-6 and 5627A-9). ITS-90 coefficients included.
Immersion	At least 100 mm (4 in) recommended
Calibrated Accuracy† (k=2)	± 0.026 °C at -196 °C ± 0.046 °C at 0 °C ± 0.077 °C at 200 °C ± 0.124 °C at 420 °C
Size	5627A-12: 305 mm x 6.35 mm (12 in x 1/4 in) 5627A-9: 229 mm x 4.7 mm (9 in x 3/16 in) 5627A-6: 152 mm x 4.7 mm (6 in x 3/16 in)
