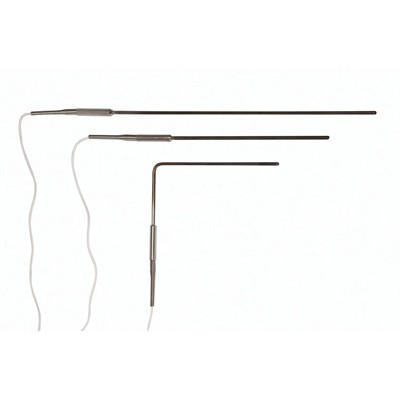

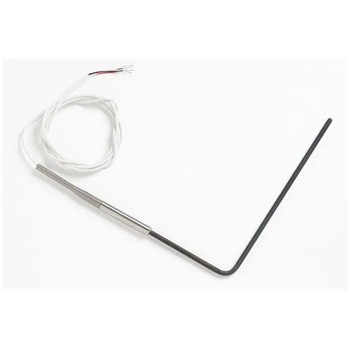

Fluke 5608 - 5609 SECONDARY PRT WITH CALIBRATION OPTION

Product

Home / Product

Category: TEMPERATURE

Model: Handheld Temperature Calibrator and Indicator

Avaibility: AVAILABLE

Call For Price

Datasheet

Description
Specification

5608: -200 °C to 500 °C5609: -200 °C to 670 °C

Specifications

Temperature range	5608: -200 °C to 500 °C 5609: -200 °C to 670 °C
Nominal resistance at 0.01 °C	100 ? ± 0.5 ?
Temperature coefficient	0.0039250 ?/?/°C
Accuracy[1]	See footnote
Short-term repeatability[2]	± 0.01 °C at 0.010 °C ± 0.02 °C at max temp
Drift[3]	± 0.01 °C at 0.010 °C ± 0.02 °C at max temp
Hysteresis	± 0.01 °C maximum
Sensor length	30 mm ± 5 mm (1.2 in ± 0.2 in)
Sensor location	3 mm ± 1 mm from tip (0.1 in ± 0.1 in)
Sheath material	Inconel™ 600
Minimum insulation resistance	5608: 500 M? at 23 °C, 20 M? at 500 °C 5609: 500 M? at 23 °C, 10 M? at 670 °C
Transition junction dimensions	71 mm x 12.5 mm (2.8 in x 0.49 in)
Minimum immersion length[4] (< 5 mK error)	5608: 80 mm (3.1 in) 5609: 100 mm (3.9 in)
Maximum immersion length	305 mm (12 in)
Response time[5]	5608: 9 seconds typical 5609: 12 seconds typical
Self heating (in 0 °C bath)	5608: 75 mW/°C 5609: 50 mW/°C
Lead-wire cable type	Teflon,™ 24 AWG
Lead-wire length	1.8 m (6 ft)
Lead-wire temperature range	-50 °C to 250 °C
Calibration	Calibration not included; NVLAP-accredited calibration optional, lab code 200348-0. Please see calibration uncertainty table and its explanation of changeable uncertainties.

[1] "Accuracy" is a difficult term when used to describe a resistance thermometer. The simplest way to derive basic "accuracy" is to combine the probe drift specification and calibration uncertainty with readout accuracy at a given temperature.

[2] Three thermal cycles from min to max temp, includes hysteresis, 99.9 % confidence

[3] After 100 hours at max temp, 99.9 % confidence

[4] Per ASTM E 644
