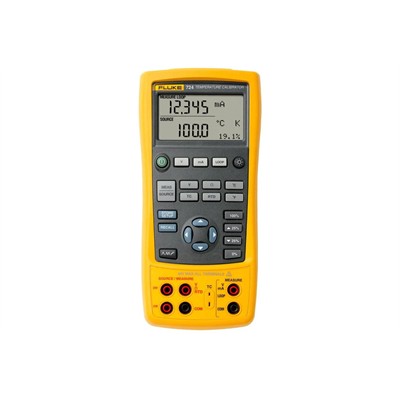

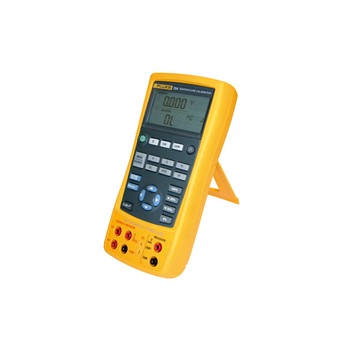

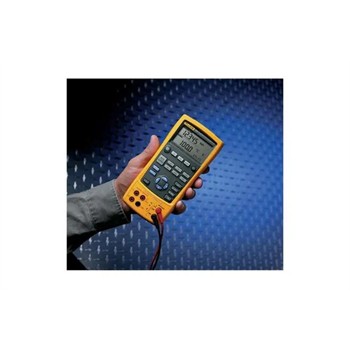

Fluke 724 TEMPERATURE Calibrator

Product

Category: TEMPERATURE

Model: Handheld Temperature Calibrator and Indicator

Avaibility: AVAILABLE

Call For Price

Datasheet

Functional Specifications - Fluke Temperature Calibrators

Measurement Accuracy

Parameter	Range	Accuracy
Voltage dc	30.000 V 20.000 V 100.000 mV -10.00 mV to 75.00 mV	0.02 % + 2 counts (upper display) 0.02 % + 2 counts (lower display) 0.02 % + 2 counts 0.025 % + 1 count (via TC connector)
Current dc	24.000 mA	0.02 % + 2 counts
Resistance	0.0 ? to 400.0 ? 401 ? to 1500 ? 1500 ? to 3200 ?	0.1 ? (4-wire) 0.15 ? (2- and 3-wire) 0.5 ? (4-wire) 1 ? (2- and 3-wire) 1 ? (4-wire) 1.5 ? (2- and 3-wire)

Source Accuracy

Parameter	Range	Accuracy
Voltage DC	100.00 mV 10.000 V -10.00 mV to 75.00 mV	0.02 % + 2 counts 0.02 % + 2 counts 0.025 % + 1 count (via TC connector)
Resistance	15.0 ? to 400.0 ? 401 ? to 1500 ? 1500 ? to 3200 ?	0.15 ? (exc. current 0.15 mA to 0.5 mA), 0.1 ? (exc. current 0.5 mA to 2 mA) 0.5 ? (excitation current 0.05 mA to 0.8 mA) 1 ? (excitation current 0.05 mA to 0.4 mA)

Specifications, Environmental & Safety

Specification Parameter	Details
Ramp functions	Source functions: Voltage, current, resistance, frequency, temperature Ramps: Slow ramp, Fast ramp, 25 % step-ramp
Loop power function	Voltage: 24 V Accuracy: 10 % Maximum current: 22 mA, short circuit protected
Step functions	Source functions: voltage, resistance, temperature\Steps: 25 % of range, 100 % of range
Operating temperature	-10 °C to 55 °C
Storage temperature	-20 °C to 71 °C
Humidity (Without Condensation)	90 % : 10 °C to 30 °C 75 % : 30 °C to 40 °C 45 % : 40 °C to 50 °C 35 % : 50 °C to 55 °C
Safety rating	CSA C22.2 No. 1010.1:1992
EMC	EN50082-1:1992 and EN55022: 1994 Class B

RTDs and Thermocouples Specifications
