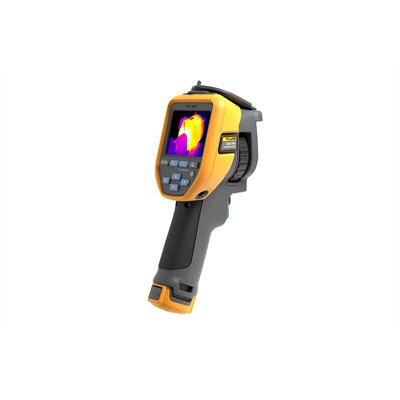

| Model | TiS55 PRO |
| Key Features |
| Infrared resolution | 288 x 216 (62,208 pixels) |
| SuperResolution | 576 x 432 |
| Detector type | Uncooled focal plane infrared detector |
| Infrared Spectral band | 8 - 14 µm |
| Field of view | 42° x 32° |
| IFOV | 2.50 mRad |
| Minimum focus distance | 0.1 m |
| Focus system | Manual focus + focus free |
| Agile Focus | Yes |
| Digital Zoom | 1-4x |
| Wireless connectivity | Yes, direct transfer thermal images wirelessly to mobile phones or PCs |
| Standard software: Fluke Connect Express | Yes, functions such as thermal image analysis, historical trend generation, custom reports, and inspection management supported |
| Asset tagging | Yes, name thermal images automatically by scanning QR codes or barcodes and save them as asset tags for thermal images |
| IR-Fusion technology | Blend continuous 0% to 100%. 1% step for adding visible details to infrared images |
| Picture-in-Picture (PIP) | Yes |
| Display screen | 3.5" (8.9 cm landscape) Touchscreen 640 x 480 LCD |
| Ergonomic design | Designed specifically for one-handed use |
| Thermal sensitivity | <= 40 mk (0.04 ?) |
| Temperature level and span | Smooth auto and manual scaling |
| Fast auto-rescale in manual mode | Yes |
| Minimum span (in manual mode) | 3 °C |
| Minimum span (in auto mode) | 3 °C |
| Built-in digital camera (visible light) | 13 mp |
| Frame rate | 9 Hz or 30 Hz |
| Dew point calculation | No |
| Temperature Measurement |
| Temperature span | -20 °C to 550 °C |
| Temperature range | -20 °C to 150 °C 0 °C to 550 °C |
| Accuracy | ±2 °C or 2%, whichever is greater (ambient temperature of 18 to 28 °C) |
| On-screen temperature correction | Yes, emissivity, background temperature, measurement distance and transmission correction supported |
| Standard palettes | 10 Gray, Ironbow, High Contrast, Amber, Hot Metal, Blue-Red, Amber Inverted, Gray Inverted, Rainbow, Steps |
| Spot temperature | Center spot (unmovable) |
| Auto high/low temperature capture | High and low temperature points marked and tracked automatically |
| User-definable spot markers | Points: 5 Lines: 5 Areas: 5 |
| Custom temperature difference calculation | 3 |
| 3-phase maximum temperature difference calculation | Yes |
| Image mode | Infrared, visible light, PIP, visible light and infrared fusion |
| Audible alarms | Alarm objects: highest temperature point, lowest temperature point, center point, custom point or line or area, 3-phase maximum temperature difference, custom temperature difference Alarm conditions: Above the temperature, below the temperature |
| Color alarms | Yes, above the temperature, below the temperature, within the temperature span, outside the temperature span |
| Preset measurement parameters (profile) | Up to 50 profiles can be saved |
| Data Storage and Image Capture |
| Storage | Standard with a 64 GB SD card Expandable up to 1 TB memory size |
| Image capture, review, save mechanism | One-handed image capture, review, and save capability |
| Image file formats | JPEG (with temperature data) |
| Memory review | Yes |
| Voice annotation | Yes, 60 seconds maximum audio recording via a Bluetooth Audio Headset |
| IR-PhotoNotes | Yes. Up to 3 extra visible light images captured can be included in JPEG files |
| Text annotations | Yes, multiple languages supported |
| Severity annotations | Yes, annotations for the 4 severity levels: normal, moderate, severe, and extreme |
| Video recording and formats | Standard video format: mp4 |
| Fully-radiometric infrared data streaming | No |
| Auto capture (temperature and interval) | Yes, user-selectable time interval for capturing images. |
| Route Inspection Function |
| Create and manage inspection routes | Yes, use the Fluke Connect Express software |
| Start, execute and manage inspection routes | Yes, use the thermal imager |
| Thermal images are grouped automatically according to inspection routes | Yes |
| Automatic reporting and trend summaries | Yes |
| Battery |
| Batteries (field-replaceable, rechargeable) | Lithium-ion rechargeable battery |
| Battery life | >5 hours (Actual life depends on settings and usage) |
| Battery charging time | < 4 hours to full charge |
| Battery charging system | Ti SBC3B Two-Bay Battery Charger used or charged via the Type-C interface |
| External power supply | AC operation through the included power adapter with the output: 15 VDC, 2 A |
| General Specificiations |
| Preset shortcut keys | 6 |
| Laser | Yes |
| Flashlight | Yes |
| Type-C interface | Yes, charging and data transfer supported |
| Operating temperature | -10 °C to 50 °C |
| Storage temperature | -20 °C to 60 °C, without batteries |
| Relative humidity | 10% to 95% non-condensing |
| Safety standards | IEC 61010-1: pollution degree 2 |
| Electromagnetic combability | IEC 61326-1: Industrial Electromagnetic Environment; CISPR 11: Group 1, Class A |
| Australia RCM | RCM IEC 61326-1 |
| Radio frequency (WIFI and Bluetooth) | 2.4 GHz |
| Radio output power (WIFI and Bluetooth) | <100 mW |
| Laser | IEC 60825-1, Class 2; 650 nm; <1 mW |
| Drop | Engineered to withstand 2 m drop |
| Ingress protection | IEC 60529: IP52 |
| RoHS3 Directive | Yes |
| Other Specifications |
| Size (L x H x W) | ? (26.7 cm x 10.1 cm x 14.5 cm) |
| Weight (battery included) | 950 g |
| Supported Languages | Simplified Chinese, Traditional Chinese, English, Korean, Japanese |
| Warranty | 2 years |
| Recommended calibration cycle | 2 years |
| Standard accessories | One thermal imager, Two batteries, One 2-Bay Battery Charging Base, One soft bag, One hard case, One SD card, One AC adapter |
